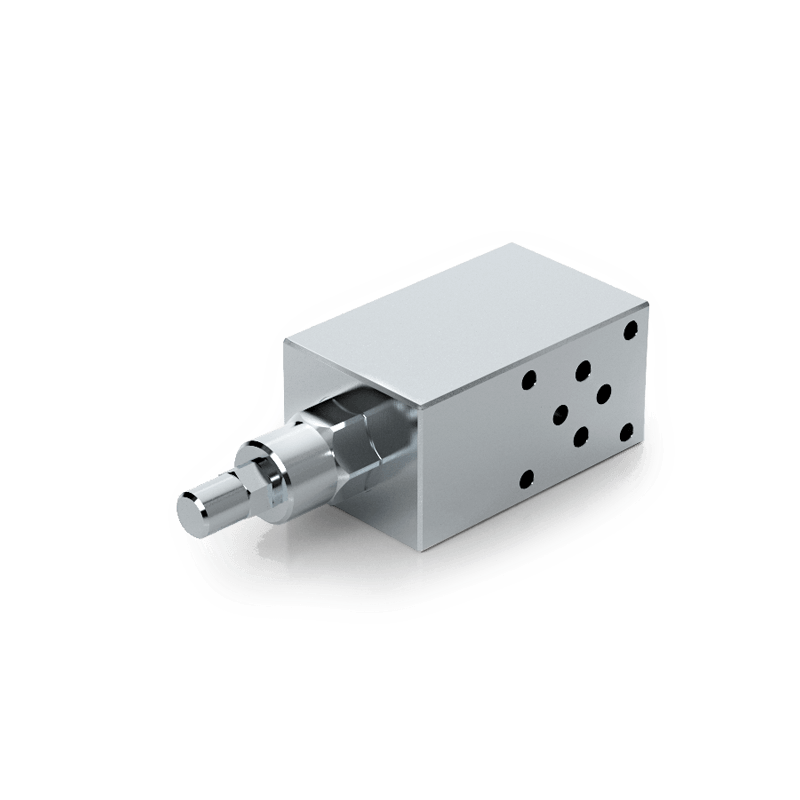

Oleodinamica Marchesini V1412 VBCD SE/B NG6 CETOP 3 single counterbalance valve

Oleodinamica Marchesini V1412 is the VBCD SE/B NG6 CETOP 3 single counterbalance valve, listed for maximum flow of 40 l/min and maximum operating pressure of 350 bar. The current factory article table gives a mass of 1.727 kg.

The factory pilot-ratio designation is 1:4.5. The valve controls the return flow of an overrunning load and holds the actuator when the directional valve is idle. The check branch permits supply flow towards the actuator, while the pilot-operated counterbalance branch meters the returning load flow in the controlled direction.

This is a NG6 / CETOP 3 sandwich module controlling line B. Align the P/T/A/B interface pattern, four 5.5 mm mounting holes and O-ring 2-012 seats with the valve stack. The mounting face uses the CETOP port pattern rather than BSP pipe threads.

The catalogue standard setting is 320 bar. This is a factory catalogue reference, separate from maximum component pressure and from the actual setting of a delivered unit. The manufacturer specifies a setting at least 1.3 times the load-induced pressure to permit closure at maximum load. The reference does not define a newly generated order-code configuration.

The zinc-plated steel body contains hardened and ground steel parts with standard BUNA-N seals and negligible internal leakage as described by the manufacturer.

The local technical PDF retains the complete applicable original manufacturer spread, including the exact article table, hydraulic symbol and installation drawing. Where curves specify oil at 50 °C and 30 cSt, these are reference conditions rather than operating-temperature limits.
