Oleodinamica Marchesini V1220 VRSP 1/2 regenerative hydraulic valve

Oleodinamica Marchesini V1220 (VRSP 1/2) is a regenerative hydraulic valve with 1/2 inch BSP main ports. Its factory ratings are 60 l/min maximum flow and 350 bar maximum operating pressure.

During regenerative operation the valve routes oil from the cylinder rod side at C1 into the head-side supply at P, adding return oil to pump delivery. When head-side pressure reaches the selected setting, regeneration is cut out and the circuit returns to full-force operation. The factory regeneration setting range is 50–100 bar; this range is separate from the 350 bar maximum operating pressure.

Connect C1 to the rod side, P to the head-side supply and M to an optional pressure gauge. Follow the complete original circuit diagram for V1 and the directional valve connections. The listed pressure range does not identify a particular delivered adjustment setting.

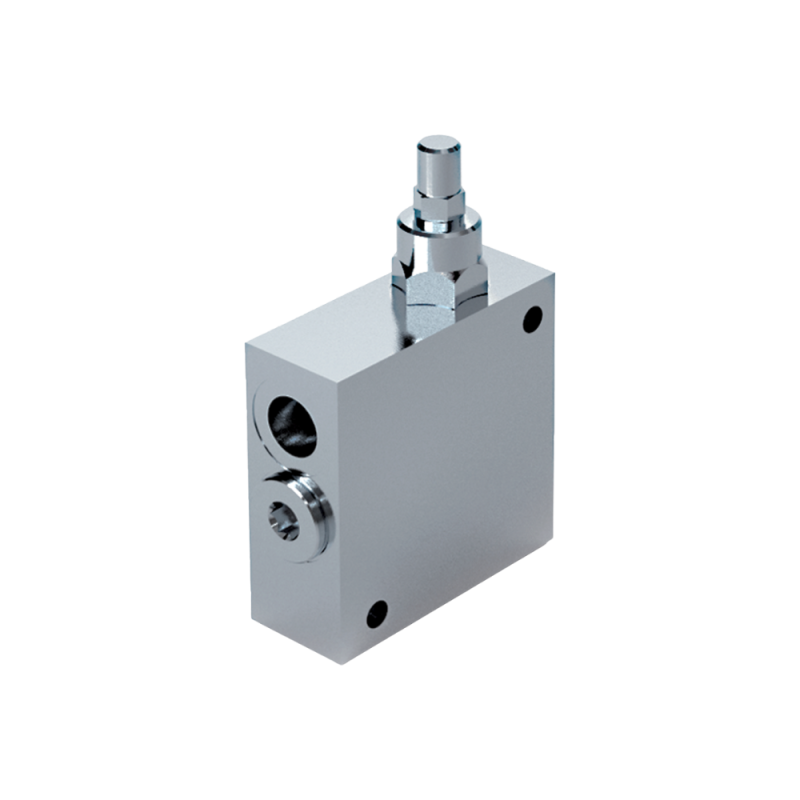

The zinc-plated steel body contains hardened and ground steel internal components and standard BUNA N seals. The local PDF includes the complete relevant manufacturer ratings, hydraulic schematic, original dimensions and any applicable curves. Representative manufacturer product image for the VRSP series. Refer to the exact article drawing in the local PDF for port and execution details.
