Oleodinamica Marchesini V1122 RFP3 1/2 OMS motor-mounted priority flow control valve

Oleodinamica Marchesini V1122 (RFP3 1/2 OMS) is a motor-mounted priority flow control valve. The factory pressure rating is 350 bar. Maximum inlet flow is 60 l/min and maximum regulated flow is 50 l/min. These are different limits; the pressure rating does not specify the outlet setting.

This version has a direct mounting interface for Danfoss OMS motors. Fit M1 and M2 to the matching motor ports and connect P and T as shown in the factory circuit drawing. The regulator directs surplus inlet flow to the tank-return path. Confirm the motor interface and return-line conditions against the original drawing; the family name alone does not establish compatibility with every motor execution.

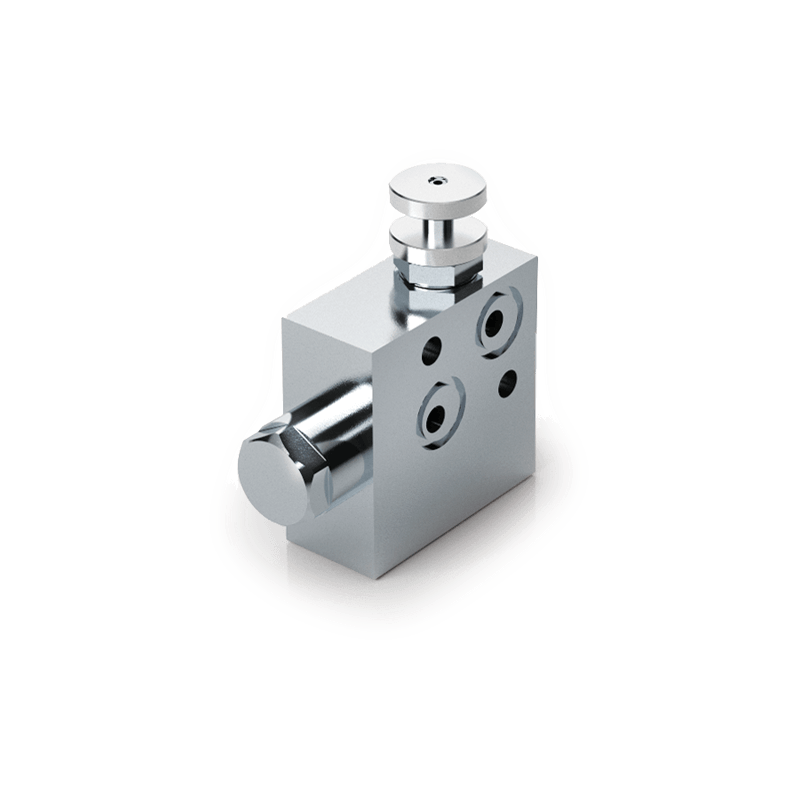

The manufacturer specifies a zinc-plated steel body, hardened and ground steel internal parts and BUNA N seals. The local technical reference preserves the complete relevant factory spread with the model table, circuit, dimensions and performance curves. Representative manufacturer product image for the RFP3 OMS series. Use the exact article table and original drawing in the local PDF for port layout, dimensions and adjustment execution.
