Oleodinamica Marchesini V0970/CA IF 4 VIE 3/8 CA four-way diverter valve

Oleodinamica Marchesini V0970/CA is an IF 4 VIE 3/8 four-way manual diverter valve with the factory /CA open-centre option. Its 3/8" BSP base size is listed for a maximum flow of 60 l/min and maximum pressure of 300 bar. The cast-iron body contains hardened and ground steel parts with standard BUNA-N seals.

The lever reverses the connections to a double-acting actuator or hydraulic motor. In position 1, P feeds A while B returns to T; in position 2, P feeds B while A returns to T. The /CA version uses the open-centre circuit shown separately on the manufacturer sheet. It must not be confused with the standard closed-centre execution.

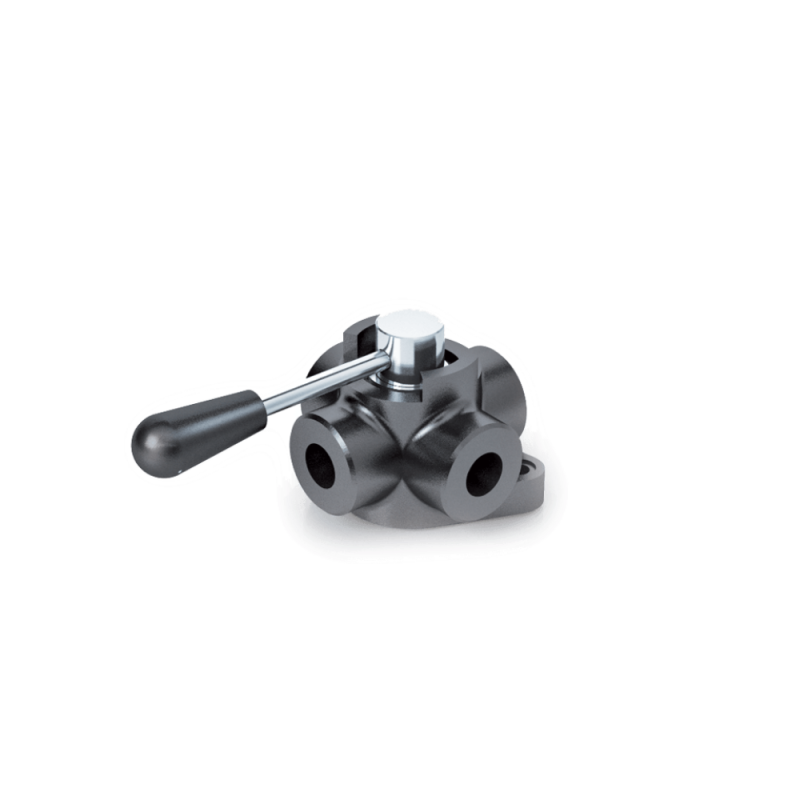

Connect P to supply, T to return and A/B to the actuator or motor. The series photograph represents the common body. The factory table gives a base mass reference of 1.270 kg; the open-centre execution is not assigned an independently verified mass.

The local PDF retains the complete original manufacturer spread with the standard and optional open-centre symbols, operating connections and installation dimensions.
