Oleodinamica Marchesini V0950 DF 6 VIE 3/4 six-way diverter valve

Oleodinamica Marchesini V0950 (DF 6 VIE 3/4) is a six-way diverter valve with 3/4 inch BSP ports. The factory lists a maximum flow of 120 l/min and a pressure rating of 220 bar. These limits describe the exact size and execution; the ratings of adjacent models are not interchangeable.

The common lever switches two hydraulic lines together between paired circuit connections. Connect the two supply lines to P and P-prime and follow the port pairing in the original hydraulic schematic. Connect the four remaining circuit ports according to the port labels and original schematic for this exact series.

The cast-iron DF 6 comprises two coupled three-way sections. Its standard centre is open within each section. Do not infer that the two separate supply circuits are cross-connected merely from the phrase open centre. The original schematic defines the internal paths. A closed-centre /CC execution is a separate order code.

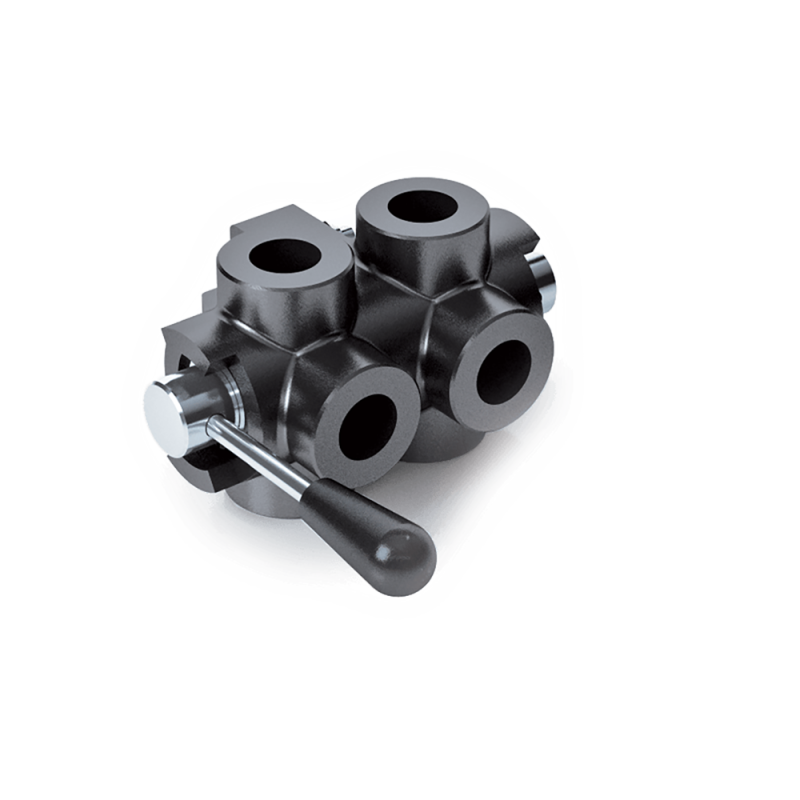

The body material is cast iron, with hardened and ground steel internal parts and BUNA N seals. The local reference retains the complete relevant original code table, schematic, drawings, curves and conditions. Representative manufacturer product image for the DF 6 series. Port sizes and execution details depend on the exact article; use its factory table and original drawing in the local PDF.
