Oleodinamica Marchesini V0932 DF 6 VIE 1/2 ACCIAIO steel-body six-way diverter valve

Oleodinamica Marchesini V0932 (DF 6 VIE 1/2 ACCIAIO) is a steel-body six-way diverter valve with 1/2 inch BSP ports. The factory lists a maximum flow of 60 l/min and a pressure rating of 300 bar. These limits describe the exact size and execution; the ratings of adjacent models are not interchangeable.

The common lever switches two hydraulic lines together between paired circuit connections. Connect the two supply lines to P and P-prime and follow the port pairing in the original hydraulic schematic. Connect the four remaining circuit ports according to the port labels and original schematic for this exact series.

This is the zinc-plated steel DF 6A execution, not the cast-iron DF 6. The manufacturer advises against operating with the lever in its intermediate central position. Use either defined working position and follow the original circuit diagram for port pairing.

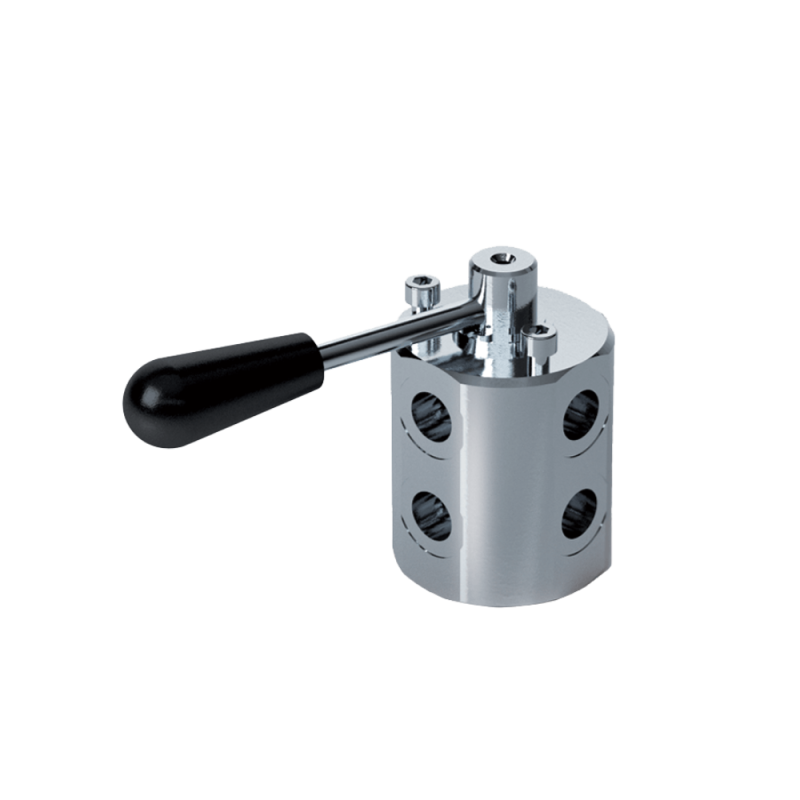

The body material is zinc-plated steel, with hardened and ground steel internal parts and BUNA N seals. The local reference retains the complete relevant original code table, schematic, drawings, curves and conditions. Representative manufacturer product image for the DF 6A series. Port sizes and execution details depend on the exact article; use its factory table and original drawing in the local PDF.
