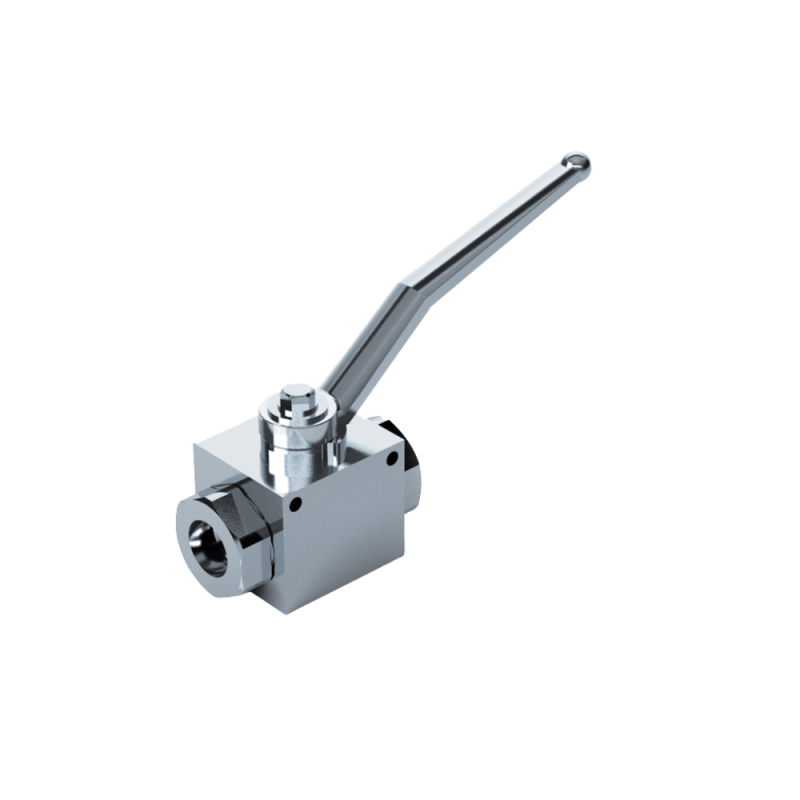

Oleodinamica Marchesini V0876/FF RS 2 VIE 2 /FF 2-way ball valve

Oleodinamica Marchesini V0876/FF is the RS 2 VIE 2 /FF two-way shut-off ball valve with female 2" BSP connections and the actually offered /FF fixing-hole execution. The manufacturer defines CODE/FF as the fixing-hole option. The corresponding base size row lists rated pressure PN 350 bar and nominal bore DN 40 mm. PN is the catalogue rating designation, not an independently stated operating limit for every duty.

Connect A and P to the line being isolated. Flow is blocked with the lever at 90 degrees and free with the lever in line. V0876 belongs to the RS 2 family; no RS 3 function is assigned from neighbouring part numbers.

The zinc-plated steel body contains ground, chromium-plated steel internals with BUNA-N and POM seals. The base row gives body dimension L 85 mm, length L1 131 mm, lever length L2 300 mm and mass reference 6.975 kg. Base mass and envelope are reference values rather than a separately measured /FF execution.

The 2-inch base row does not provide a fixing-hole diameter or pattern. The selected offer identifies /FF, but no hole size is copied from a smaller valve. Confirm the fixing pattern for installation.

The local technical PDF retains the complete relevant original manufacturer spread, including the applicable size row, spring or option legend, hydraulic diagram and drawing. Neighbouring executions apply only to their identified rows. Any 50 °C oil temperature and 30 cSt viscosity beside curves are test conditions, not operating limits.
