Oleodinamica Marchesini V0823 V-FCR 2T 120 normally closed pull/push end-of-stroke valve

Oleodinamica Marchesini V0823 (V-FCR 2T 120) is a normally closed pull/push end-of-stroke valve with 3/4 inch BSP main ports. Its factory ratings are 120 l/min maximum flow and 350 bar maximum operating pressure.

The spring-return normal state blocks the oil passage. Pulling or pushing the spool opens the flow path, allowing flow in either direction. Connect P to the control valve and A to the circuit following the original schematic. This is the normally closed 2T execution.

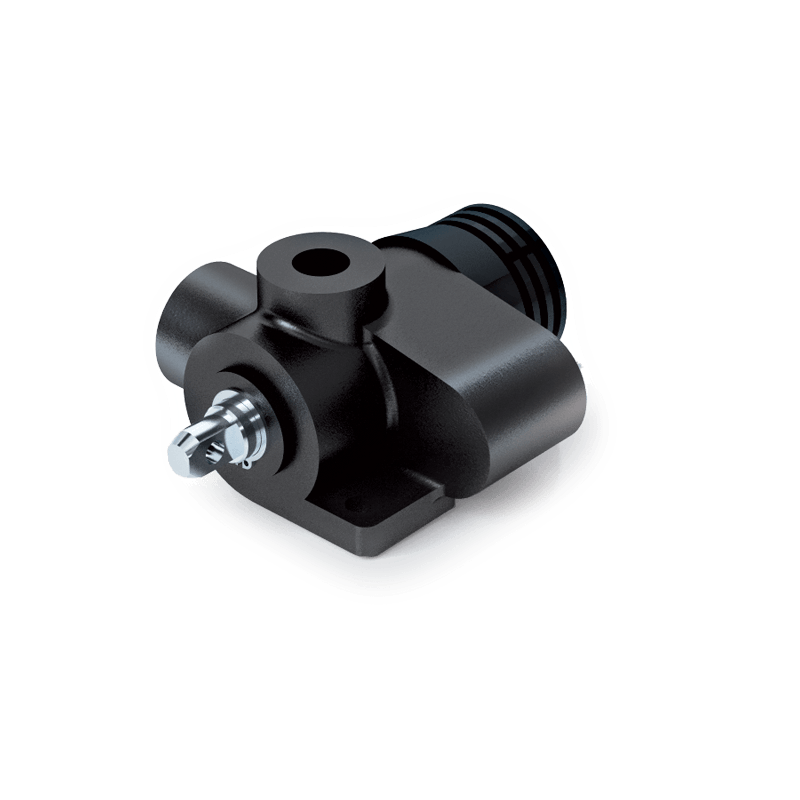

The cast iron body contains hardened and ground steel internal components and standard BUNA N seals. The local PDF includes the complete relevant manufacturer ratings, hydraulic schematic, original dimensions and any applicable curves. Representative manufacturer product image for the V-FCR 2T series. Refer to the exact article drawing in the local PDF for port and execution details.
