Oleodinamica Marchesini V0815 V - FCC 1/2 NC normally closed cam-operated end-of-stroke valve

Oleodinamica Marchesini V0815 (V - FCC 1/2 NC) is a normally closed cam-operated end-of-stroke valve with 1/2 inch BSP main ports. Its factory ratings are 70 l/min maximum flow and 350 bar maximum operating pressure.

The cam mechanically actuates the spool to open flow from P to A. The normally closed valve can be used in actuator sequencing or an end-of-stroke circuit. The factory example connects P to the circuit and A to tank; the mounting arrangement depends on the intended application. The pressure-loss curve applies to an effective stroke of at least 50%.

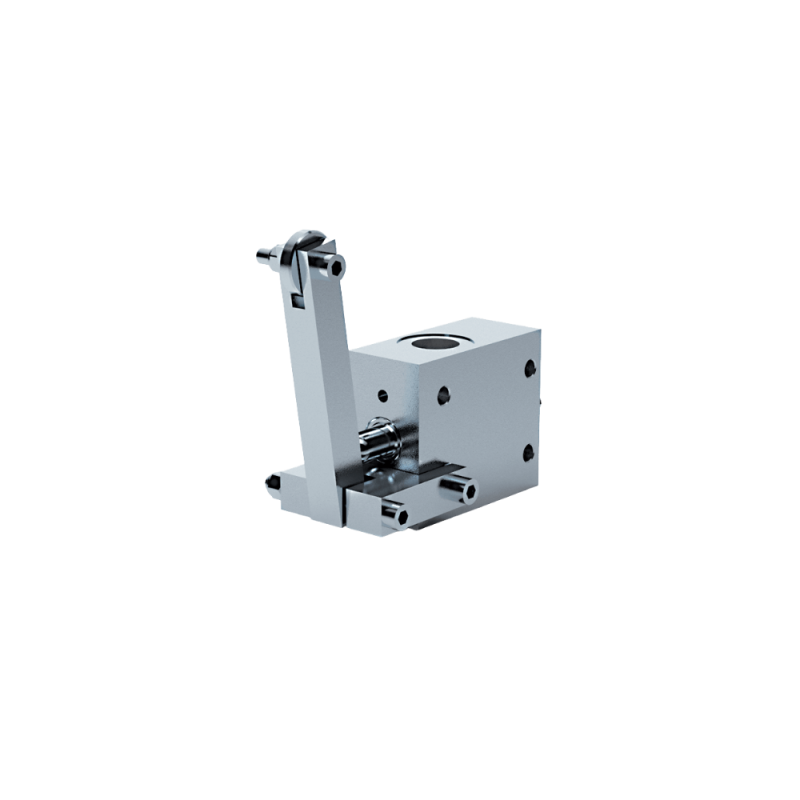

The zinc-plated steel body contains hardened and ground steel internal components and standard BUNA N seals. The local PDF includes the complete relevant manufacturer ratings, hydraulic schematic, original dimensions and any applicable curves. Representative manufacturer product image for the V-FCC-NC series. Refer to the exact article drawing in the local PDF for port and execution details.
