Hose burst cartridge valve

Oleodinamica Marchesini V0800 VUBA 3/4 hose burst cartridge valve

Model: V0800 · Oleodinamica Marchesini
Maximum operating pressure (bar)350
Maximum flow (l/min)110
Valve functionExcess-flow shut-off
Port connection3/4" BSP
Body materialBurnished steel
MountingScrew-in cartridge

Description

Oleodinamica Marchesini V0800 is the VUBA 3/4 hose burst cartridge valve, with factory maximum flow 110 l/min, maximum operating pressure 350 bar and mass 0.048 kg.

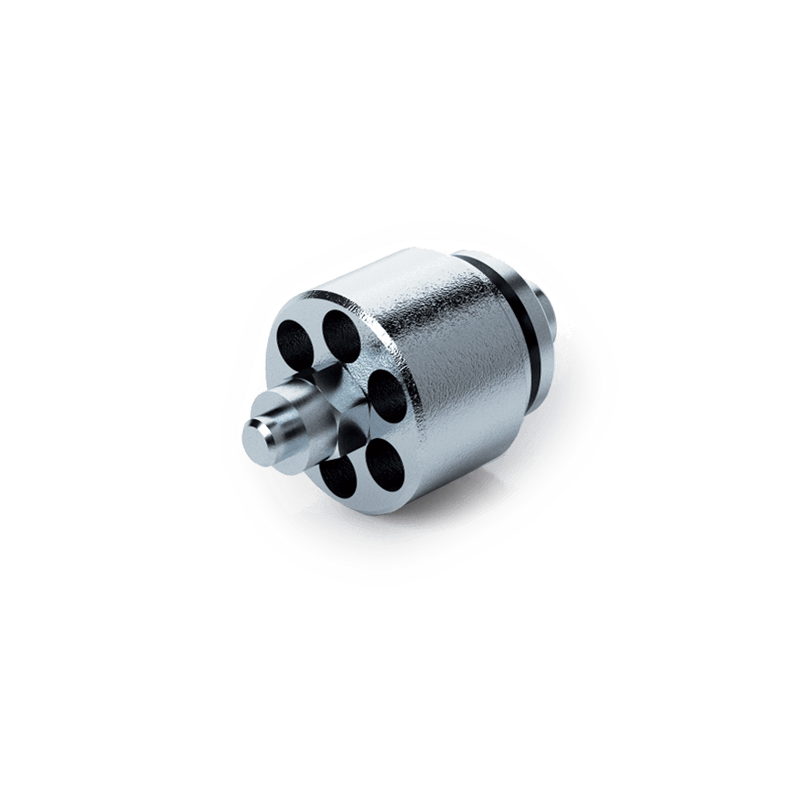

This is the bare burnished-steel cartridge for installation in the correctly machined 3/4" BSP port. The drawing gives cartridge dimension L of 18 mm, dimension L1 of 34 mm, plate-gap reference S of 2.1 mm and required clearance diameter F of 24.5 mm. It is distinct from the complete MFF or MMF housing assemblies.

Install V towards supply and C towards the actuator. If actuator outflow exceeds the adjusted reaction flow, the valve closes to limit uncontrolled descent after hose failure. The manufacturer states that this device is neither a load-holding check valve nor a one-way flow restrictor and recommends a downstream flow-control valve.

The manufacturer recommends a reaction-flow setting of about 1.5 times the system flow. The listed maximum flow and drawing gap S are separate references, not a verified delivered calibration. Hole-on-plate and preset options apply only to separately specified articles and are not inferred for this model.

Test conditions for the curves are 50 °C oil temperature and 30 cSt viscosity.

Full specifications

Technical specifications
Product type Hose burst cartridge valve
Maximum operating pressure (bar) 350
Maximum flow (l/min) 110
Protected flow Actuator outflow
Port thread standard BSP
Mounting Screw-in cartridge
Adjustment Sealing-plate gap
Catalogue plate gap S (mm) 2.1
Factory type designation VUBA 3/4
Manufacturer Oleodinamica Marchesini
Manufacturer part number V0800
Product family VUBA
Catalogue dimension L (mm) 18
Catalogue dimension L1 (mm) 34
Mass (kg) 0.048
Required clearance diameter F (mm) 24.5
Technical specifications
Port connection 3/4" BSP
Body material Burnished steel
Valve function Excess-flow shut-off
