Hose burst valve assembly

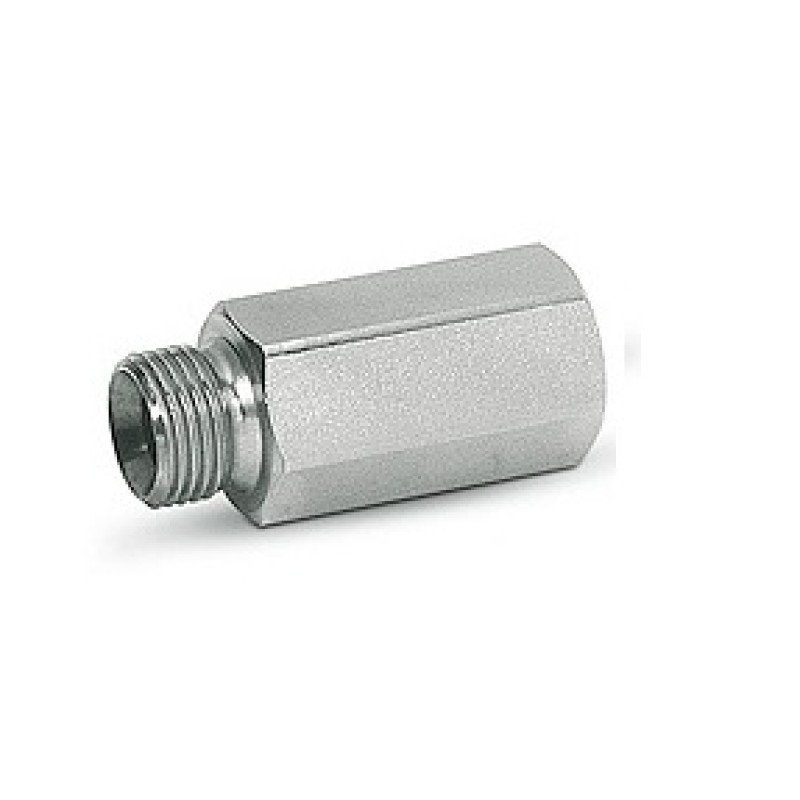

Oleodinamica Marchesini V0792 VUBA 1/2 + MMF hose burst valve assembly

Model: V0792 · Oleodinamica Marchesini
Cartridge maximum pressure reference (bar)350
Cartridge maximum flow reference (l/min)80
Valve functionExcess-flow shut-off
Port connection1/2" BSP
MountingIn-line
Cartridge body materialBurnished steel

Description

Oleodinamica Marchesini V0792 is the VUBA 1/2 + MMF hose burst valve assembly with a male/female MMF inline housing and 1/2" BSP connections. The original complete-assembly table gives mass 0.140 kg, catalogue dimension L1 of 62 mm and hexagon size 27 mm.

The assembly contains the V0790 hose burst cartridge, whose factory maximum-flow reference is 80 l/min and maximum-pressure reference is 350 bar. These values describe the cartridge. A separately stated maximum pressure for the complete housing is not supplied by this factory sheet, so a complete-assembly pressure limit is not inferred.

Install V towards supply and C towards the actuator. If actuator outflow exceeds the adjusted reaction flow, the valve closes to limit uncontrolled descent after hose failure. The manufacturer states that this device is neither a load-holding check valve nor a one-way flow restrictor and recommends a downstream flow-control valve.

The manufacturer recommends a reaction-flow setting of about 1.5 times the system flow. The listed maximum flow and drawing gap S are separate references, not a verified delivered calibration. Hole-on-plate and preset options apply only to separately specified articles and are not inferred for this model.

Test conditions for the curves are 50 °C oil temperature and 30 cSt viscosity.

Full specifications

Technical specifications
Product type Hose burst valve assembly
Cartridge maximum pressure reference (bar) 350
Cartridge maximum flow reference (l/min) 80
Protected flow Actuator outflow
Port thread standard BSP
Mounting In-line
Cartridge body material Burnished steel
Adjustment Sealing-plate gap
Connection arrangement Male/female
Factory type designation VUBA 1/2 + MMF
Included cartridge V0790
Manufacturer Oleodinamica Marchesini
Manufacturer part number V0792
Product family VUBA
Catalogue dimension L1 (mm) 62
Hexagon size (mm) 27
Mass (kg) 0.14
Technical specifications
Port connection 1/2" BSP
Valve function Excess-flow shut-off
