Six-port cross-line relief valve

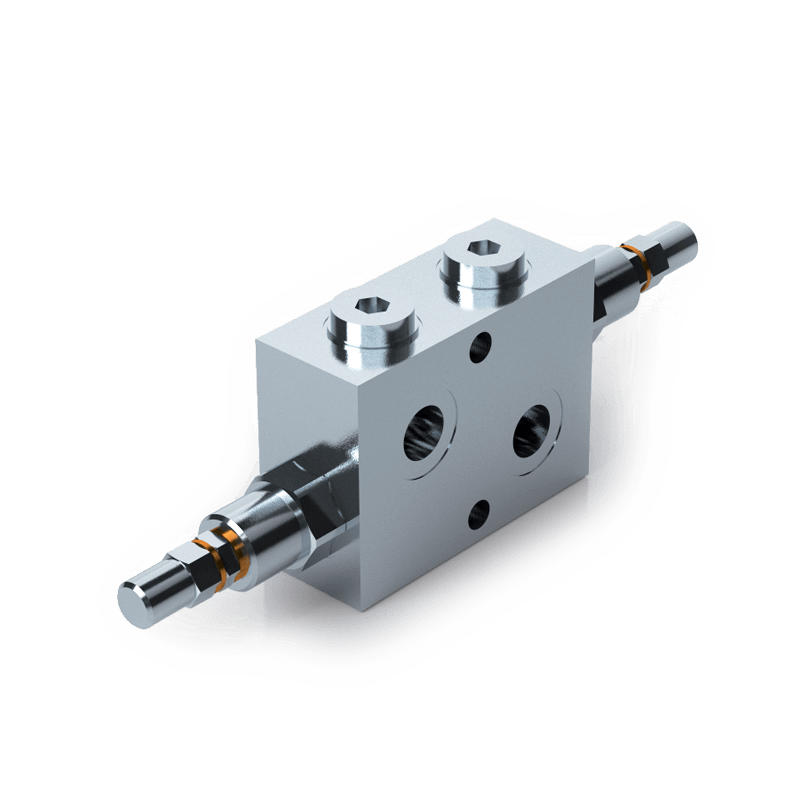

Oleodinamica Marchesini V0737/300 VMPDI 3/8 six-port cross-line relief valve

Model: V0737/300 · Oleodinamica Marchesini
Maximum operating pressure (bar)350
Maximum flow (l/min)45
Valve functionCross-line pressure relief
Port connection3/8" BSP
Body materialZinc-plated steel
MountingIn-line

Description

Oleodinamica Marchesini V0737/300 is the VMPDI 3/8 six-port cross-line relief valve with the actual selected 80–300 bar spring range and standard screw adjustment. Its manufacturer base row specifies maximum flow 45 l/min, maximum operating pressure 350 bar and 3/8" BSP connections.

The two relief elements limit pressure in both actuator branches through crossed discharge. The manufacturer describes six connections: two inlets and four reversible outlets, allowing one valve to serve two cylinders. Connect the V1/V2 passages as shown, preferably near the actuator. It is distinct from two reliefs discharging to a common tank connection.

The body is zinc-plated steel with hardened and ground internals, standard BUNA-N seals and guided-poppet sealing with negligible leakage. The common base row gives mass reference 1.520 kg; this is not an independently weighed calibrated or handknob execution. No delivered preset is assumed from the catalogue spring table.

Test conditions for the curves are 50 °C oil temperature and 30 cSt viscosity.

Full specifications

Technical specifications
Product type Six-port cross-line relief valve
Maximum operating pressure (bar) 350
Pressure setting maximum (bar) 300
Pressure setting minimum (bar) 80
Maximum flow (l/min) 45
Port thread standard BSP
Mounting In-line
Internal parts material Hardened and ground steel
Sealing type Guided poppet
Adjustment Screw
Factory type designation VMPDI 3/8
Manufacturer Oleodinamica Marchesini
Manufacturer part number V0737/300
Product family VMPDI
Base execution mass reference (kg) 1.52
Technical specifications
Port connection 3/8" BSP
Body material Zinc-plated steel
Valve function Cross-line pressure relief
Technical specifications
Seal material BUNA N
