Differential-area relief valve with anti-cavitation

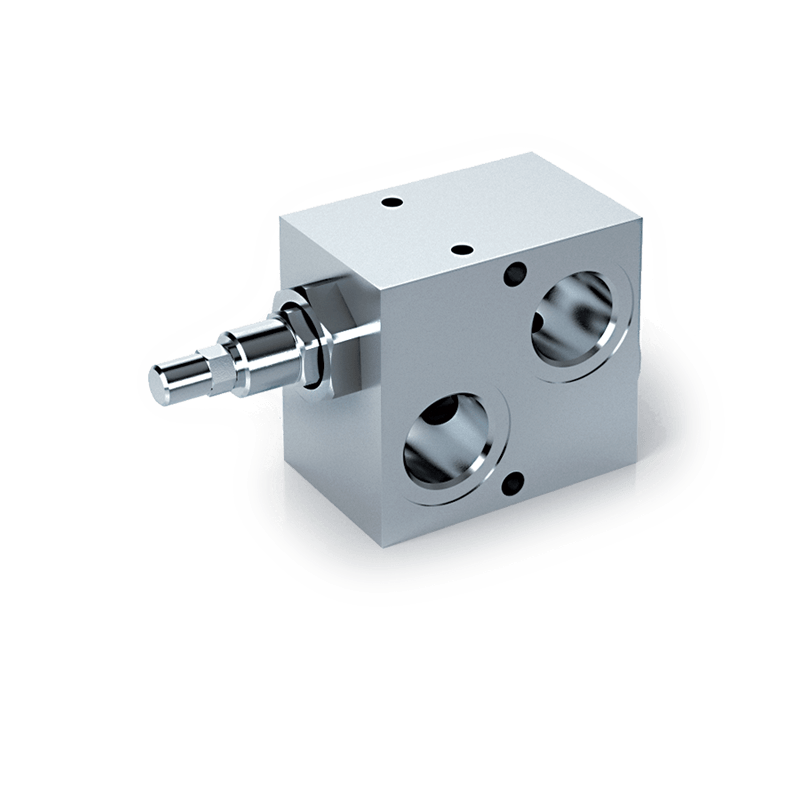

Oleodinamica Marchesini V0736/400 VAUAC 1 differential-area relief valve with anti-cavitation

Model: V0736/400 · Oleodinamica Marchesini
Maximum operating pressure (bar)350
Maximum flow (l/min)160
Valve functionDifferential-area pressure relief and anti-cavitation
Port connection1" BSP
Body materialZinc-plated steel
MountingIn-line

Description

Oleodinamica Marchesini V0736/400 is the VAUAC 1 differential-area relief valve with anti-cavitation with the actual supplier-selected 50–400 bar spring range and 1" BSP connections. The manufacturer prints the base row and finite spring table; the full calibrated code is selected on the supplier offer rather than generated. Its base component row specifies maximum flow 160 l/min and maximum operating pressure 350 bar.

The assembly combines one differential-area relief element with a make-up check. It limits pressure in one actuator branch, with a slower opening characteristic and more consistent setting as flow changes. Connect V1 and V2 according to the original hydraulic symbol.

The 50–400 bar range describes spring adjustment capability rather than a confirmed delivered preset. The catalogue standard-setting reference for this spring is 180 bar. The spring endpoint does not override the separately stated 350 bar component limit.

The body is zinc-plated steel with hardened and ground internals, standard BUNA-N seals and guided-poppet sealing with negligible leakage. The common size row gives a mass reference of 3.155 kg; no separately weighed calibrated spring execution is stated. Handknob and sealing-cap suffixes denote other adjustments and are not added to this screw-adjusted article.

Test conditions for the curves are 50 °C oil temperature and 30 cSt viscosity.

Full specifications

Technical specifications
Product type Differential-area relief valve with anti-cavitation
Maximum operating pressure (bar) 350
Pressure setting maximum (bar) 400
Pressure setting minimum (bar) 50
Maximum flow (l/min) 160
Port thread standard BSP
Mounting In-line
Internal parts material Hardened and ground steel
Sealing type Guided poppet
Adjustment Screw
Factory type designation VAUAC 1
Manufacturer Oleodinamica Marchesini
Manufacturer part number V0736/400
Product family VAUAC-1
Standard setting reference (bar) 180
Base execution mass reference (kg) 3.155
Technical specifications
Port connection 1" BSP
Body material Zinc-plated steel
Valve function Differential-area pressure relief and anti-cavitation
Technical specifications
Seal material BUNA N
