Oleodinamica Marchesini V0707/V180 VRPRL 1/2 direct-acting pressure reducing valve with check valve

Oleodinamica Marchesini V0707/V180 (VRPRL 1/2) is a direct-acting pressure reducing valve with check valve. The factory pressure rating is 350 bar. Maximum flow is 30 l/min, with a 35–180 bar pressure-adjustment range. This exact /V180 hand-knob execution is listed as a complete article by a supplier; the factory sheet defines the base body, spring range and adjustment options.

Connect P to the main pressure line, Reg. to the circuit requiring lower pressure and T to tank. The reducing element controls downstream pressure. The 350 bar inlet/body limit is distinct from the 35–180 bar regulated-pressure range. The factory lists internal leakage of 70 cm³/min with 350 bar applied at P; this is a test-specific value, not a zero-leakage or pressure-holding claim.

An integrated check valve permits free reverse flow. This reverse-flow path is the defining difference from the corresponding VRP version.

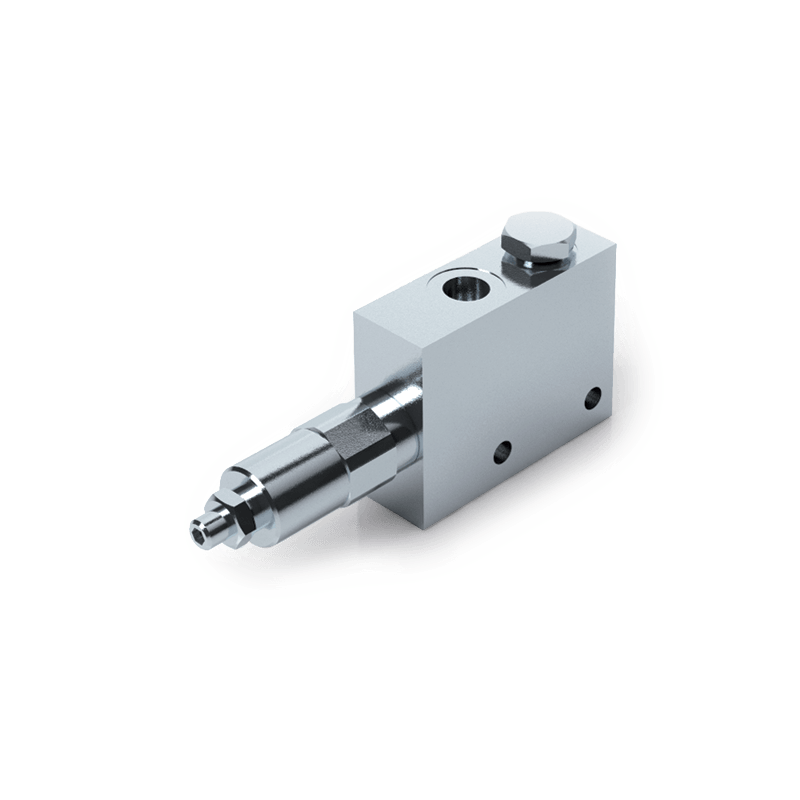

The manufacturer specifies a zinc-plated steel body, hardened and ground steel internal parts and BUNA N seals. The local technical reference preserves the complete relevant factory spread with the model table, circuit, dimensions and performance curves. Representative manufacturer product image for the VRPRL series. Use the exact article table and original drawing in the local PDF for port layout, dimensions and adjustment execution.
