Oleodinamica Marchesini V0690/PP180 VMP L 3/8 lightweight relief valve - prepared for sealing cap

Oleodinamica Marchesini V0690/PP180 is a VMP L 3/8 lightweight relief valve with 3/8" BSP connections, a 10–180 bar spring setting range and provision for a sealing cap. Its manufacturer base designation is V0690. The full order code is listed by the supplier; the manufacturer sheet confirms the base valve, spring range and control option.

The applicable factory base has a maximum operating pressure of 350 bar and a maximum flow of 40 l/min. The 180 in the offered code identifies the upper spring-range value in that supplier offer; it is not a confirmed 180 bar factory preset or the maximum component pressure. The original standard-setting reference for this range is 90 bar. Confirm the actual delivered setting separately.

The lightweight VMP L valve limits pressure in one line by opening a path to tank when its setting is reached. Connect P to the pressure circuit and T to tank; the factory describes the P connection as reversible. The 1/4 and 3/8 executions have different maximum flows and body dimensions, so use the exact base row in the local document.

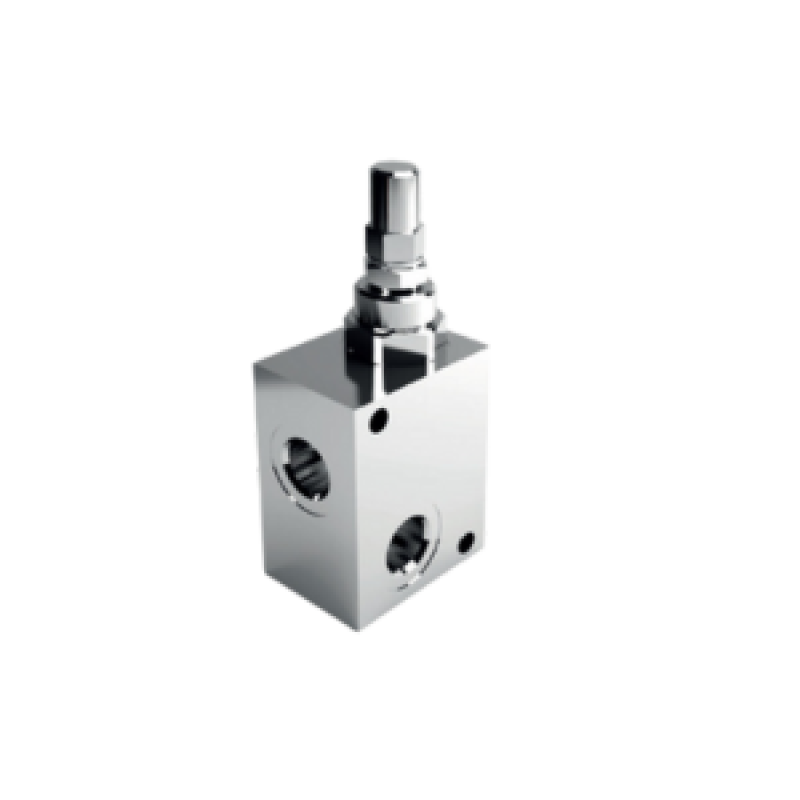

The /PP factory option means arranged for a sealing cap. It does not by itself establish that a cap, tamper seal or calibrated setting is supplied. The series photograph may show the standard screw execution. The base-table mass is provided only as a reference; an exact mass and external envelope for this preparation are not independently established.

The body is zinc-plated steel with hardened and ground internal parts and standard BUNA-N seals. Base body dimensions are labelled as reference body dimensions; no adjustment-dependent overall envelope is inferred. Pressure/flow curves use oil at 50 °C and 30 cSt, which are curve reference conditions rather than an operating-temperature range. The local PDF retains the complete relevant original spread, including its ordering notes and spring table.
