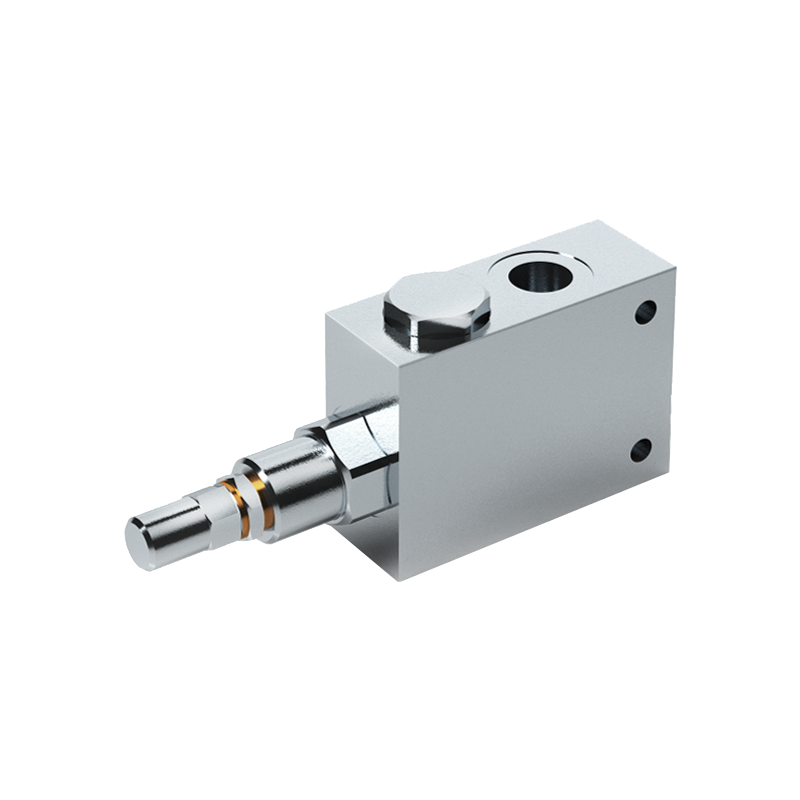

Oleodinamica Marchesini V0648/300 VS2C 3/8 - 3V three-way sequence valve

Oleodinamica Marchesini V0648/300 is the VS2C 3/8 - 3V three-way sequence valve with the actual supplier-selected 80–300 bar spring range and 3/8" BSP connections. The manufacturer prints the base row and finite spring table; the full calibrated code is selected on the supplier offer rather than generated. Its base component row specifies maximum flow 40 l/min and maximum operating pressure 350 bar.

Connect C to the cylinder and the P ports to supply and the head-side connection of the secondary cylinder as shown in the application circuit. Reverse flow is free. The manufacturer states that secondary-circuit pressure adds to the primary setting.

The 80–300 bar range describes spring adjustment capability rather than a confirmed delivered preset. The catalogue standard-setting reference for this spring is 150 bar. The spring endpoint does not override the separately stated 350 bar component limit.

The body is zinc-plated steel with hardened and ground internals, standard BUNA-N seals and guided-poppet sealing with negligible leakage. The common size row gives a mass reference of 1.032 kg; no separately weighed calibrated spring execution is stated. Handknob and sealing-cap suffixes denote other adjustments and are not added to this screw-adjusted article.

The local technical PDF retains the complete relevant original manufacturer spread, including the applicable size row, spring or option legend, hydraulic diagram and drawing. Neighbouring executions apply only to their identified rows. Any 50 °C oil temperature and 30 cSt viscosity beside curves are test conditions, not operating limits.
