Direct-acting sequence valve

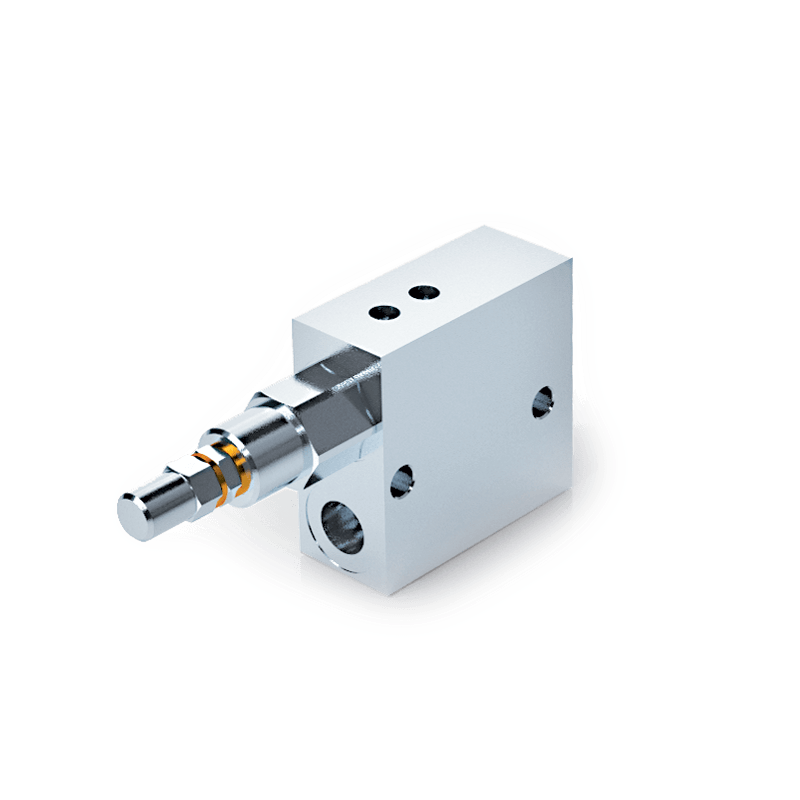

Oleodinamica Marchesini V0640/300 VS2C 3/8 direct-acting sequence valve

Model: V0640/300 · Oleodinamica Marchesini
Maximum operating pressure (bar)350
Maximum flow (l/min)35
Valve functionSequencing with reverse check
Port connection3/8" BSP
Body materialZinc-plated steel
MountingIn-line

Description

Oleodinamica Marchesini V0640/300 is the VS2C 3/8 direct-acting sequence valve with the actual supplier-selected 80–300 bar spring range and 3/8" BSP connections. The manufacturer prints the base row and finite spring table; the full calibrated code is selected on the supplier offer rather than generated. Its base component row specifies maximum flow 35 l/min and maximum operating pressure 350 bar.

Connect V to supply and C to the cylinder. The valve opens the secondary circuit after the primary function reaches its setting, while the integral check permits reverse flow. Secondary-circuit pressure adds to the primary setting.

The 80–300 bar range describes spring adjustment capability rather than a confirmed delivered preset. The catalogue standard-setting reference for this spring is 150 bar. The spring endpoint does not override the separately stated 350 bar component limit.

The body is zinc-plated steel with hardened and ground internals, standard BUNA-N seals and guided-poppet sealing with negligible leakage. The common size row gives a mass reference of 1.172 kg; no separately weighed calibrated spring execution is stated. Handknob and sealing-cap suffixes denote other adjustments and are not added to this screw-adjusted article.

Test conditions for the curves are 50 °C oil temperature and 30 cSt viscosity.

Full specifications

Technical specifications
Product type Direct-acting sequence valve
Maximum operating pressure (bar) 350
Pressure setting maximum (bar) 300
Pressure setting minimum (bar) 80
Maximum flow (l/min) 35
Port thread standard BSP
Mounting In-line
Internal parts material Hardened and ground steel
Sealing type Guided poppet
Adjustment Screw
Factory type designation VS2C 3/8
Manufacturer Oleodinamica Marchesini
Manufacturer part number V0640/300
Product family VS2C
Reverse check opening pressure (bar) 7
Standard setting reference (bar) 150
Base execution mass reference (kg) 1.172
Technical specifications
Port connection 3/8" BSP
Body material Zinc-plated steel
Valve function Sequencing with reverse check
Technical specifications
Seal material BUNA N
