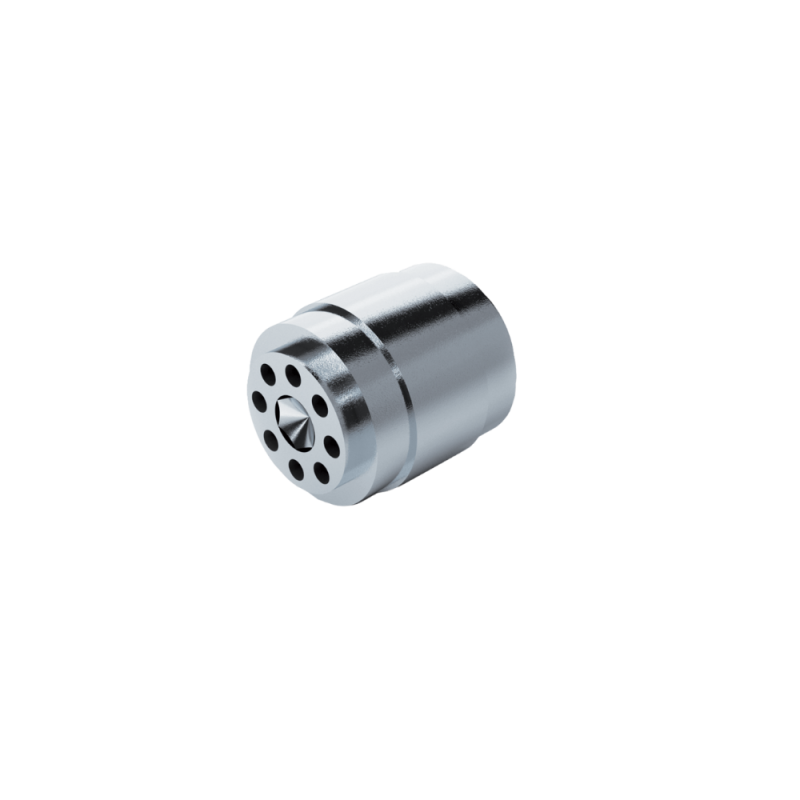

Oleodinamica Marchesini V0591 VUI 1/4 integrated check valve

Oleodinamica Marchesini V0591 is the VUI 1/4 integrated check-valve insert with a G 1/4 mounting interface. The factory table specifies maximum flow of 20 l/min, maximum pressure of 350 bar and cracking pressure of 2.2 bar. Its visible drawing table gives a mass of 0.011 kg and length L of 17 mm.

Flow is permitted from V to C and blocked in the reverse direction. The compact insert screws into the correctly machined cavity of a custom hydraulic manifold or circuit. Its zinc-plated steel body seals externally through an O-ring.

The insert diameter D is 11.3 mm; the mating cavity guide bore X is 11.4 mm. These are different dimensions and must not be interchanged. The local PDF retains the cavity section, including the 118-degree seat, dimensions Y/Z and the 9 × 1 mm O-ring reference. O-ring material is not independently specified.

The local PDF retains the complete applicable original manufacturer spread, including the article table, hydraulic symbol, drawings and ordering notes. Where curves specify oil at 50 °C and 30 cSt, these are curve reference conditions rather than an operating-temperature limit.
