Oleodinamica Marchesini V0508/RU VAA/RU 1/2 cross-line relief valve

Oleodinamica Marchesini V0508/RU (VAA/RU 1/2) is a cross-line relief valve with a maximum flow of 60 l/min and a maximum operating pressure of 350 bar. The factory-listed mass is 2.182 kg. The maximum pressure is a component limit, distinct from the selected spring range and actual relief setting.

A single common adjustment limits pressure in both actuator lines, with check valves to reduce cavitation during braking of an overrunning load. The factory table gives a 50–300 bar setting range. Main and tank connections are G 1/2. The manufacturer recommends installation near the actuator and an external check valve at T with a minimum cracking pressure of 3 bar. Follow the repeated V1/V2 port labels in the original diagram to distinguish supply and actuator sides.

Internal parts are hardened and ground steel, with standard BUNA-N seals and a guided-poppet construction. The original pressure/flow curves use oil at 50 °C and 30 cSt; these are curve reference conditions, not an established operating-temperature range. Use the local full spread for the applicable circuit, dimensions, spring tables and installation conditions.

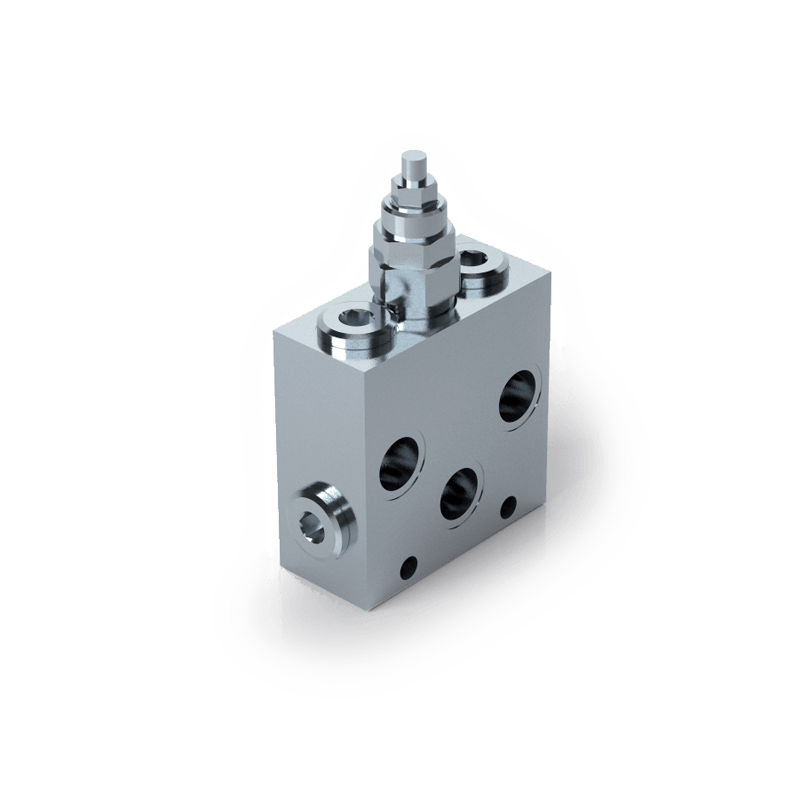

The manufacturer photograph represents the series. The local PDF retains the relevant original article tables and drawings unchanged.
