Oleodinamica Marchesini V0507/160 dual relief valve with anti-cavitation

Oleodinamica Marchesini V0507/160 is the VAUAC 3/8-inch dual relief-valve execution with anti-cavitation checks. Hikom lists this exact complete supplier article. The current factory V0507 size row gives 3/8-inch BSP connections, maximum flow 45 l/min and component pressure limit 350 bar.

The valve limits pressure in both branches of a hydraulic motor. When a set pressure is reached, the relief element opens to tank T; check valves provide make-up flow to help prevent cavitation during an overrunning motor load. Connect M1/M2 to the motor and V1/V2 to the supply, following the original diagram; T is the separate tank connection. The manufacturer recommends mounting close to the actuator.

The sources disagree on the selected spring execution. Hikom calls V0507/160 a 20-160 bar article. The current factory general catalogue prints a separate 3/8-inch 95-160 bar spring and explicitly mentions V0507/160 in another range-table row. The currently linked family sheet instead groups 3/8-inch and 1/2-inch sizes under 10-180 and 80-300 bar springs. Flowfit uses exact SKU V0507/160 with a 10-180 bar title and an incorrect 70 l/min feature for the 3/8-inch size. No unqualified selected spring range, delivered preset or pressure-setting filter is assigned; the 160 suffix is not a maximum operating-pressure rating.

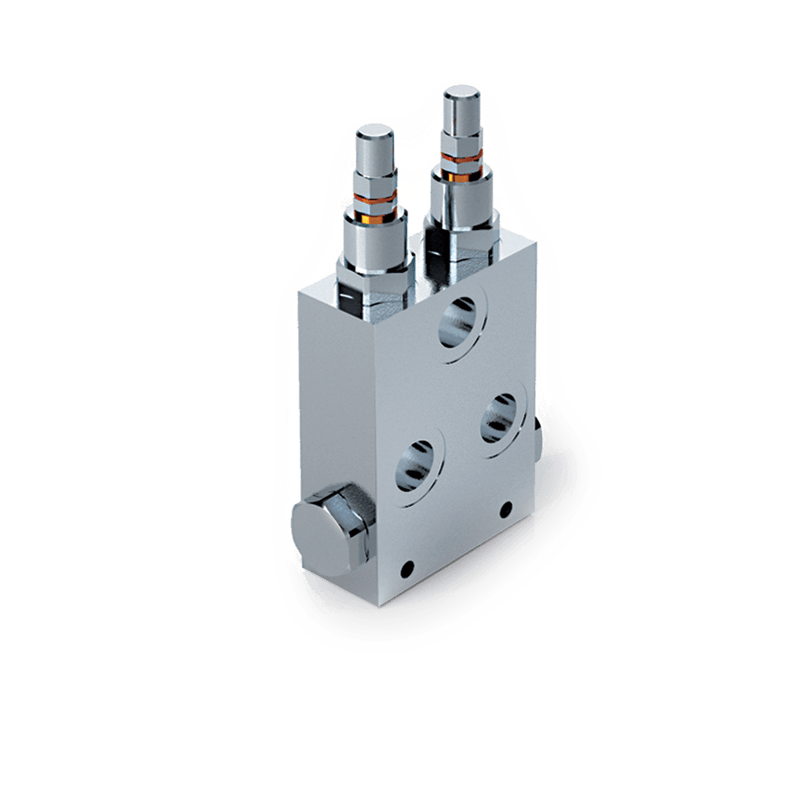

The zinc-plated steel body, hardened and ground steel internals and standard BUNA-N seals follow the factory V0507 family specification. The image is a representative manufacturer family photograph. Variant-specific dimensions, mass and calibration remain unassigned while the execution differences are unresolved.

The local PDF retains the complete directly linked original spread and the relevant general-catalogue spread, with their differing spring tables clearly identified. Adjacent sizes and original source inconsistencies must not be used to manufacture a selected setting.
