Oleodinamica Marchesini V0455 VAU 1/2 AG - AR cross-line relief valve

Oleodinamica Marchesini V0455 (VAU 1/2 AG - AR) is a cross-line relief valve with a maximum flow of 60 l/min and a maximum operating pressure of 350 bar. The factory-listed mass is 1.480 kg. The maximum pressure is a component limit, distinct from the selected spring range and actual relief setting.

The valve mounts directly on Samhydraulik AG/AR motors. Match the original flange drawing, oil passages and sealing seats to the motor before installation; a matching family name alone does not establish compatibility with every motor execution.

The motor-side M1/M2 passages are secured by hollow bolts, which the drawing states are not supplied. The separately illustrated CR01058Z G 1/2 bolt is an accessory, not a threaded hole specification for the 21.3 mm body bore. V1/V2 connect to the supply. The supplier names the 10–180 bar range for its V0455 offer; no other spring or setting suffix is generated here.

Internal parts are hardened and ground steel, with standard BUNA-N seals and a guided-poppet construction. The original pressure/flow curves use oil at 50 °C and 30 cSt; these are curve reference conditions, not an established operating-temperature range. Use the local full spread for the applicable circuit, dimensions, spring tables and installation conditions.

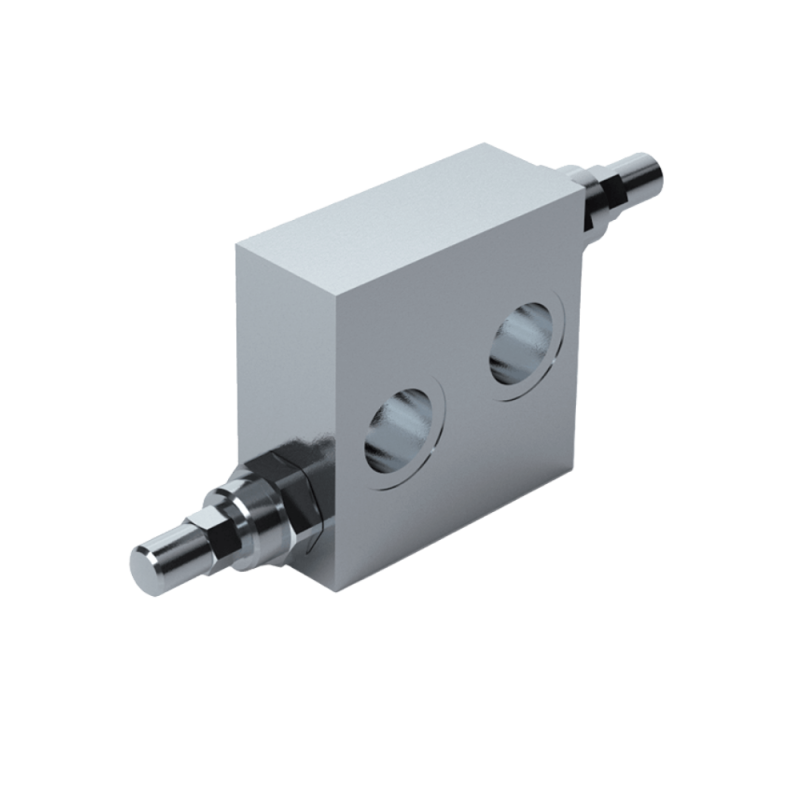

The manufacturer photograph represents the series. The local PDF retains the relevant original article tables and drawings unchanged.
