Oleodinamica Marchesini V0425 VBCDF 1/2 DE OMP-OMR double motor counterbalance valve

Oleodinamica Marchesini V0425 (VBCDF 1/2 DE OMP-OMR) is a double motor counterbalance valve rated for 50 l/min maximum flow and 350 bar maximum operating pressure. Its factory pilot ratio is 1:4.5. The manufacturer lists a standard setting of 320 bar; this catalogue setting is separate from the maximum pressure rating.

The two counterbalance sections control load-driven motor rotation and retain the load in both directions. Connect V1/V2 to the supply and C1/C2 to the motor flange. Pilot pressure opens the corresponding controlled return path; the integrated check paths admit supply flow. Follow the original hydraulic schematic for both motor directions.

The direct flange interface is for Danfoss OMP/OMR motors. V1/V2 supply connections are 1/2" BSP; the C1/C2 motor-interface passages have a listed 9 mm bore and O-ring sealing. Check the original drawing for the exact mounting pattern.

This unsuffixed article is the version without the /SF brake-release function. The shared factory sheet also illustrates the separately ordered /SF version; its brake connection must not be assigned to this article.

The manufacturer specifies a valve setting at least 1.3 times the load-induced pressure. Check the circuit setting against the actual load; no customer-specific adjustment or /P or /PP option is inferred from this standard article code. The body is zinc-plated steel with hardened and ground steel internals and standard BUNA N seals.

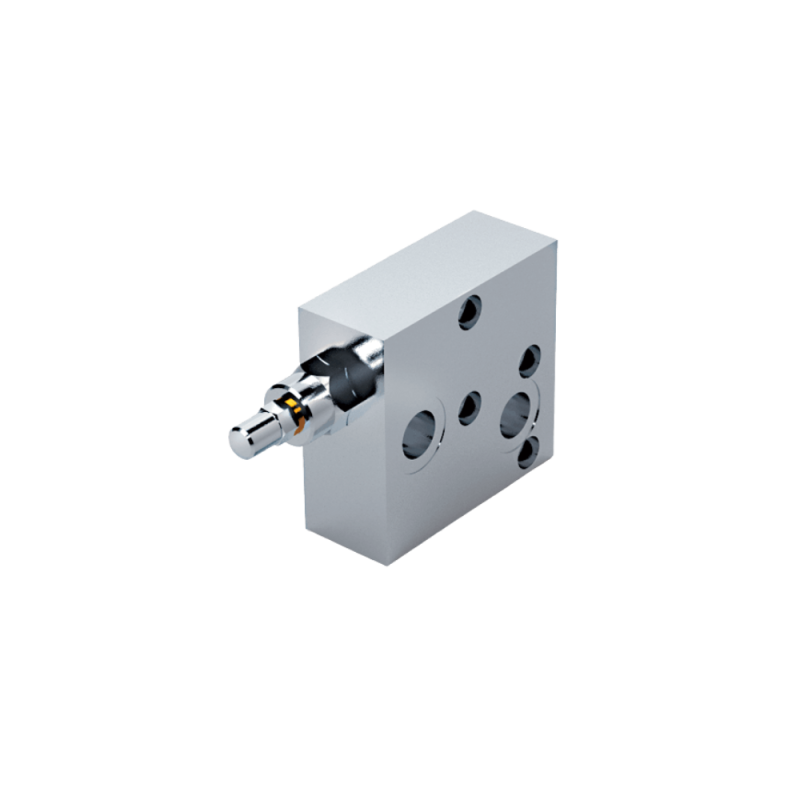

The local PDF preserves the complete relevant manufacturer code table, hydraulic schematic, original drawings, curves and conditions. Representative manufacturer product image for the VBCDF DE OMP/OMR series. Check the exact article drawing and hydraulic schematic in the local PDF for its port arrangement and execution.
