Oleodinamica Marchesini V0395/FLV single screw-mounted counterbalance valve

Oleodinamica Marchesini V0395/FLV is a single counterbalance valve with a screw connection for direct mounting on an actuator. It controls and holds load-driven movement in one direction, helping prevent the load from overrunning the hydraulic supply. The manufacturer drawing identifies the main connections as V2 and C2, with separate M gauge and PIL pilot connections.

The original performance table specifies a maximum flow of 40 l/min, maximum pressure of 320 bar and pilot ratio of 1:4.5. Main connections V2–C2 are G 3/8 and the gauge/pilot connections M–PIL are G 1/4. The manufacturer lists a steel body, hardened and ground steel internal parts, standard NBR seals and a mass of 1.59 kg.

The 320 bar table value is a maximum-pressure specification, not a stated fixed pressure preset. No additional calibration, sealing-cap option or article combination is inferred. The technical reference includes the complete original manufacturer page with the exact article rows, hydraulic circuit and dimensions.

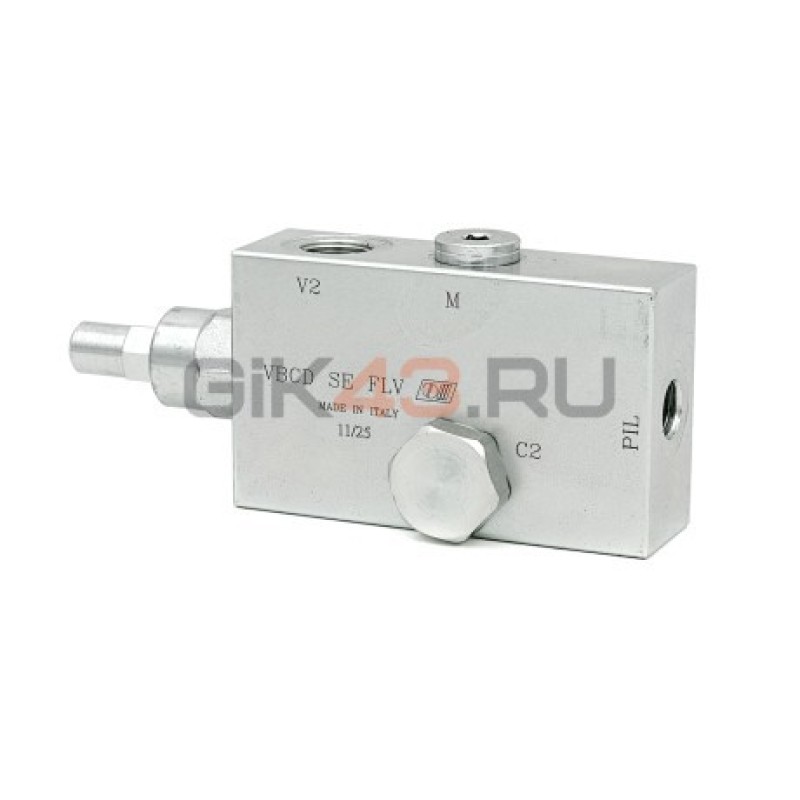

The genuine product photograph represents the VBCD SE FLV construction. Use the original article table and drawing to verify mounting dimensions and connections. The technical profile does not specify the supplied pressure setting or production revision.
