Oleodinamica Marchesini V0380 VRAP 110/130 DE + VMP plough overturning valve

Oleodinamica Marchesini V0380 (VRAP 110/130 DE + VMP) is a plough overturning valve for automatic reversal of the hydraulic cylinder on a reversible plough. Its factory maximum pressure is 400 bar and maximum exchange pressure is 250 bar. These are separate limits; the exchange pressure is not the valve body pressure rating. The listed mass is 3.160 kg.

The double pilot-operated check arrangement holds the cylinder at an intermediate position. C1 connects to the rod side, C2 to the head side, and P/T to the machine supply. The C1 drawing identifies a 12 mm connection bore, distinct from the G 3/8 threads listed for C2 and P/T.

This execution adds a head-side relief valve to limit cylinder extension force against the plough mechanical stops. The factory sheet states an approximate exchange setting of 150 bar and a head-side relief setting of 90 bar. These settings are distinct from the maximum pressure and can be changed for the application.

The zinc-plated steel body contains hardened and ground steel internal parts and standard BUNA-N seals. The guided poppet provides low-leakage load holding. Catalogue dimensions are supplied for installation checks; the type designation is retained without generating optional /CR or other configurations.

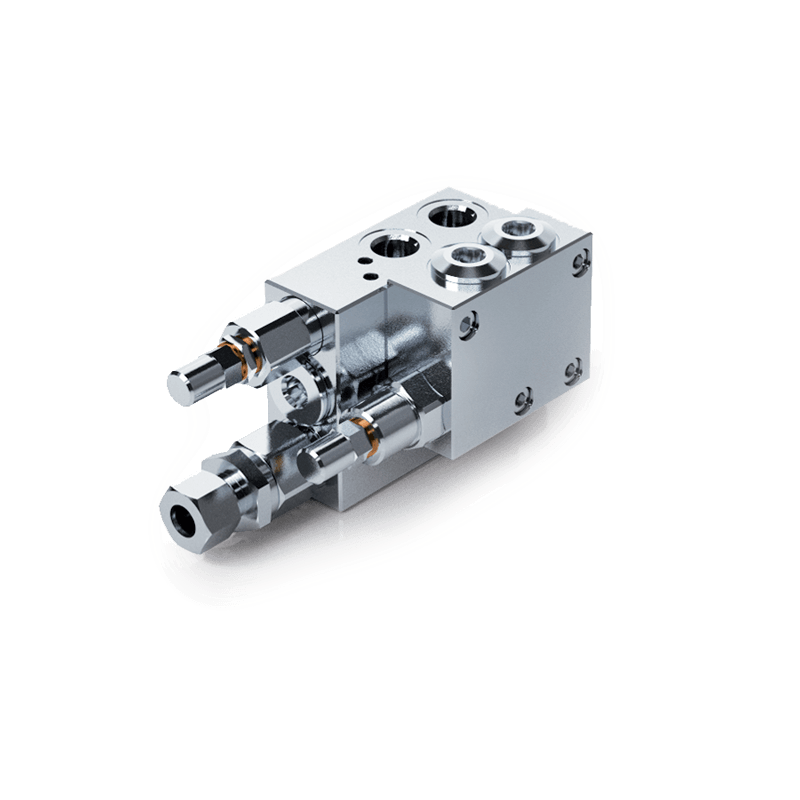

The manufacturer photograph represents the series. The local PDF retains the relevant original article tables and drawings unchanged.
