Oleodinamica Marchesini V0331 double-acting plough overturning valve with alignment

Oleodinamica Marchesini V0331 is the current VRAP 100/110 SS VMP double-acting plough overturning valve with load alignment. It controls the alignment and overturning cylinders of a reversible plough, with automatic flow reversal. The exact V0331 current manufacturer row and the matching Flowfit article identify this execution.

The current original lists maximum exchange pressure 250 bar and maximum component pressure 400 bar. Exchange pressure is a switching parameter and must not be confused with the component pressure limit. Its C2, P and T connections are 3/8-inch BSP; the catalogue table marks C1 as diameter 12 mm. The source does not identify a thread standard or define the interface function for that dimension.

Connect C1 to the rod side and C2 to the head side of the overturning cylinder A. Connect U1 to the head side and U2 to the rod side of the alignment cylinder B, and P/T to the machine supply. Cylinder B first aligns the load; before that movement ends, cylinder A begins overturning. After the dead point the cylinders move together to return the plough to its working position. Installation must follow the retained original circuit and drawing.

The body is zinc-plated steel with hardened and ground steel internals and standard BUNA-N seals. The current exact V0331 row lists mass 3.180 kg. The manufacturer describes an exchange setting of approximately 150 bar as a catalogue supply reference; no individual delivered preset is independently confirmed here.

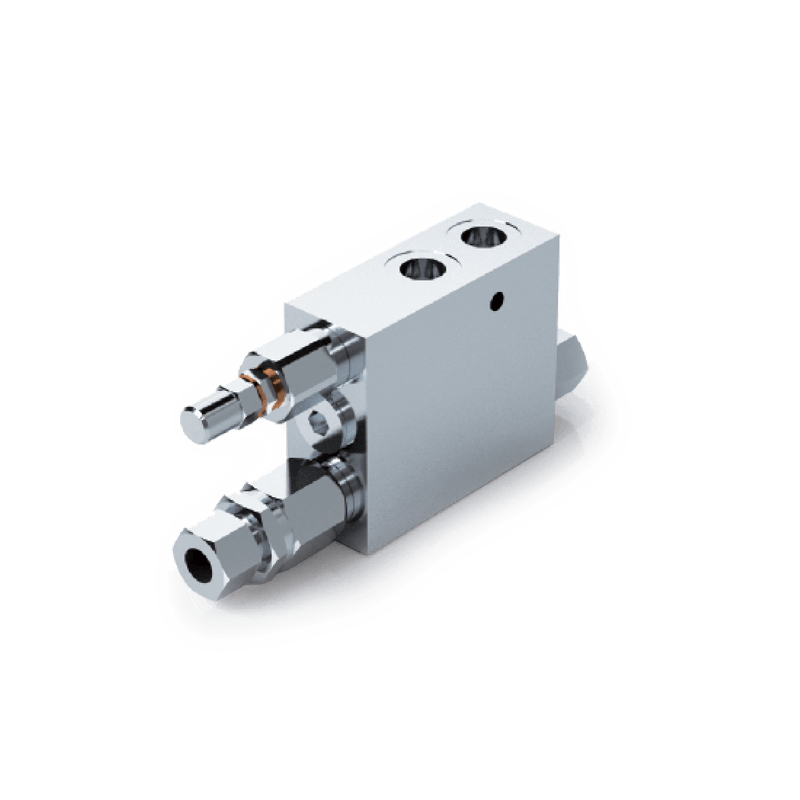

Earlier supplier text calls V0331 VRAP 80/100 SS plus VMP. This profile follows the current VRAP 100/110 SS VMP execution explicitly named by both the current factory original and the selected Flowfit offer. Those different execution descriptions are not collapsed into a cylinder-size alias. The representative manufacturer family photograph may show the adjacent base execution; use the exact V0331 original row and circuit for selection.

The local PDF retains the complete current original manufacturer spread, including the V0331 row, hydraulic circuit and drawing. Neighbouring V0330 data and older supplier catalogue geometry are not assigned to this article.
