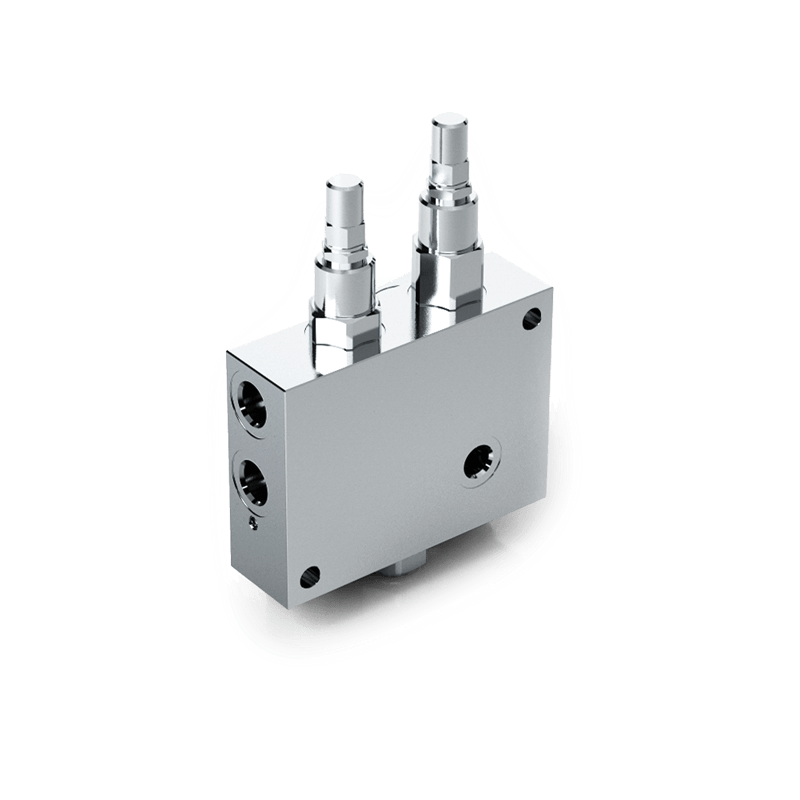

Oleodinamica Marchesini V0297 VNS CS 3/8 non-stop plough accumulator valve

Oleodinamica Marchesini V0297 is the VNS CS 3/8 non-stop plough and sub-soiler accumulator charge/discharge valve with 3/8" BSP connections. The factory maximum pressure is 350 bar and mass is 2.720 kg. The circuit combines two pressure-relief branches, a check valve and an adjustable restrictor for shock protection.

BP adjusts system charging pressure over 10–180 bar; AP sets the safety discharge pressure over 80–300 bar. These are separate setting ranges, not confirmed delivered presets, and neither replaces the 350 bar component pressure limit. A maximum flow is not stated in the applicable factory article table.

The manufacturer requires an open-centre or float directional spool. Connect P to the machine supply and the labelled U connection to the accumulator/system according to the original drawing; the English paragraph calls this connection C, while the actual schematic and body drawing label it U. Follow the labelled circuit when connecting T for discharge or oil reuse.

The body is zinc-plated steel with hardened and ground internals and standard BUNA-N seals. The visible factory drawing gives overall catalogue dimension H1 as 176.5 mm. Retain the separate P/T/U circuit and both BP/AP adjustments when comparing this valve with the simpler VNS articles.

The local PDF retains the complete applicable original manufacturer spread, including the article table, hydraulic symbol, drawings and ordering notes. Where curves specify oil at 50 °C and 30 cSt, these are curve reference conditions rather than an operating-temperature limit.
