Oleodinamica Marchesini V0281 flangeable single-acting plough overturning valve — VRA 60/80 SE FL

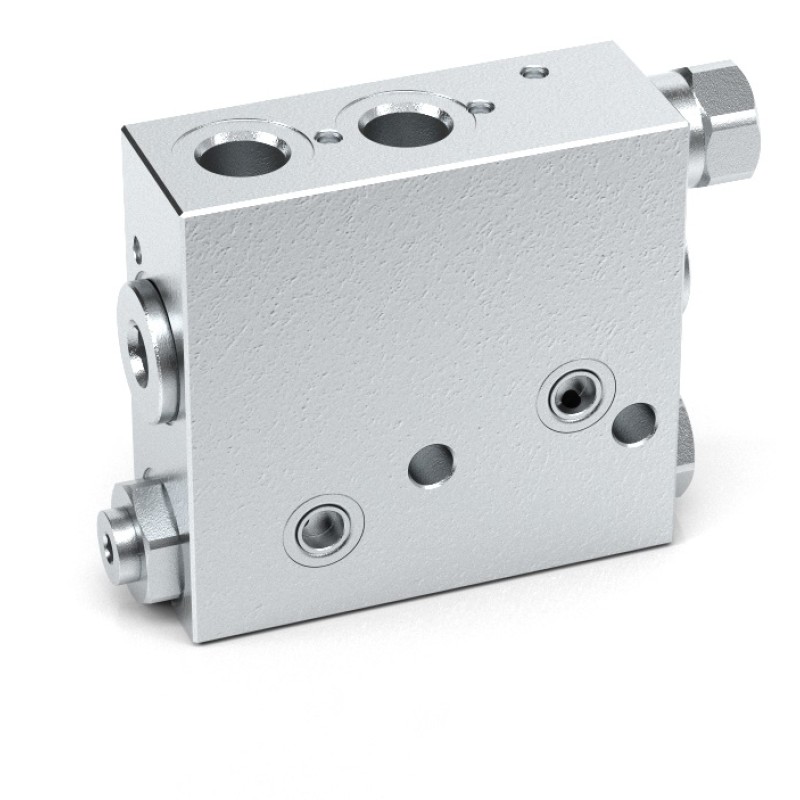

Oleodinamica Marchesini V0281 is a flangeable single-acting plough overturning valve designed for direct flange mounting on a reversible-plough cylinder. The manufacturer 04.2017 bulletin prints the exact V0281 / VRA 60/80 SE FL row, its hydraulic symbol and flange drawing.

The component limit is 400 bar and maximum exchange pressure is 200 bar. The selected named-brand offer identifies 3/8" BSP supply connections. Cylinder-side flange passages are not described as BSP threads. No maximum-flow value, mass, or unverified flange dimensions are borrowed from the ordinary VRA SE or from V0341 shown below it.

The original manufacturer document is an earlier edition retained by the named supplier. This profile documents that exact offered article; it does not assert equivalence with later similarly named plough-valve variants. No individual discontinuation notice has been established.

The local PDF retains the complete relevant original pages, exact size row, hydraulic symbol and installation context. Neighbouring executions apply only to their identified rows. Oil temperature 50 °C and viscosity 30 cSt shown with curves are reference conditions, not general operating limits.
