Oleodinamica Marchesini V0275 VBL/3 SE 3/8 single pilot-operated check valve

Oleodinamica Marchesini V0275 (VBL/3 SE 3/8) is a single pilot-operated check valve with a maximum flow rating of 40 l/min and a maximum operating pressure of 350 bar. The original factory table specifies a pilot ratio of 1:8 and a check-valve cracking pressure of 8 bar.

Flow is admitted from V towards C and retained in the reverse direction until pilot pressure opens the check element. Connect V to the supply, C to the retained actuator side and PIL to the pilot-pressure line. Main V/C connections are 3/8" BSP; the separate PIL connection is 1/4 inch BSP.

The high-pilot-ratio design has damped closing and is intended to reduce instability in circuits with heavy loads. The standard cracking pressure belongs to this exact code; optional spring values listed on the shared sheet are not assigned to it.

The manufacturer specifies hardened and ground steel internal parts, standard BUNA N seals and a guided-poppet check element with negligible leakage. The original curves use oil at 50 °C and 30 cSt; these are test reference conditions, rather than an operating-temperature or viscosity range. No optional spring, seal or other configuration is generated for this article.

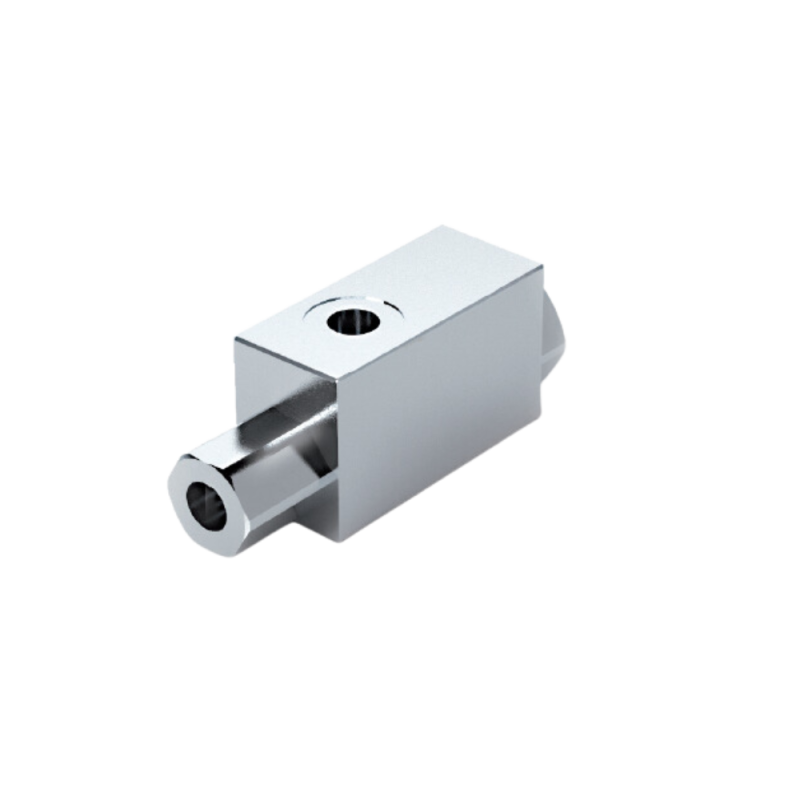

The local PDF retains the complete relevant factory code table, hydraulic schematic, original drawing and curves. Representative manufacturer product image for the VBL/3 series. Use the exact article drawing in the local PDF to check its connections and mounting arrangement.
