Oleodinamica Marchesini V0191 VBPDE 3/4 A double pilot-operated check valve

Oleodinamica Marchesini V0191 (VBPDE 3/4 A) is a double pilot-operated check valve. The factory maximum operating pressure is 350 bar and the maximum flow is 100 l/min.

Two pilot-operated checks retain the actuator in both directions. Each section permits supply flow towards its cylinder port and blocks return until the opposite pilot line is pressurised. Connect V1/V2 to the supply and C1/C2 to the actuator using the mounting arrangement for this execution.

The manufacturer table specifies a 1:3.7 pilot ratio and a catalogue cracking pressure of 3 bar. These are the standard table values for this code; optional springs and seal arrangements are separate configurations.

The type-A body uses 3/4" BSP threaded supply and actuator connections. Its port geometry and size-specific ratings are defined by the exact factory row and original drawing; the /FLV screw-mounted version is a separate article.

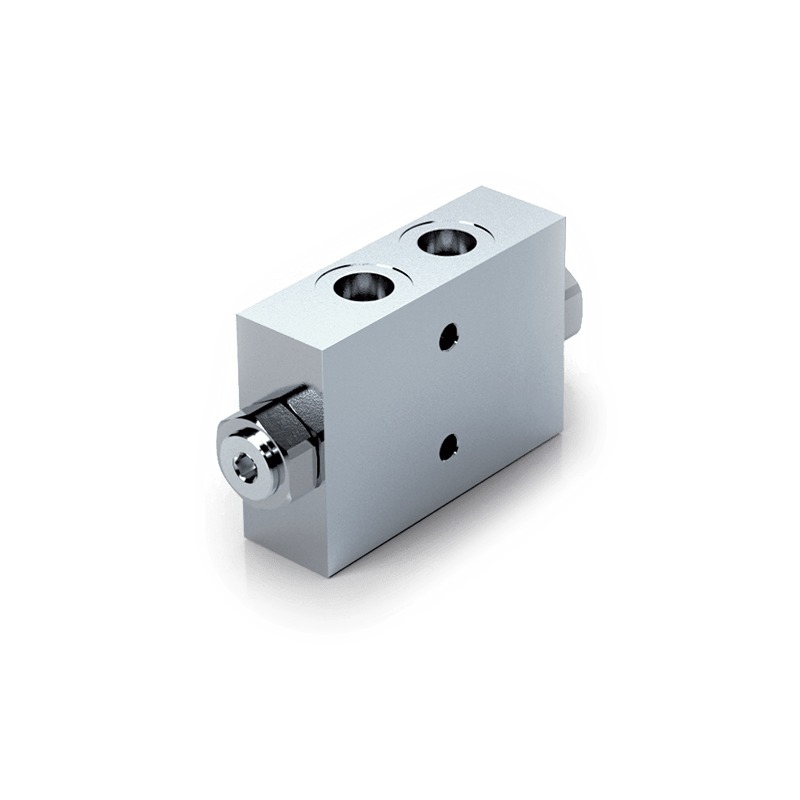

The body is zinc-plated steel with hardened and ground steel internal components and standard BUNA N seals. The local PDF preserves the complete relevant manufacturer ratings, schematic, dimensions and conditions. Representative manufacturer product image for the VBPDE A series. Use the exact article drawing in the local PDF to check its connections and mounting arrangement.
