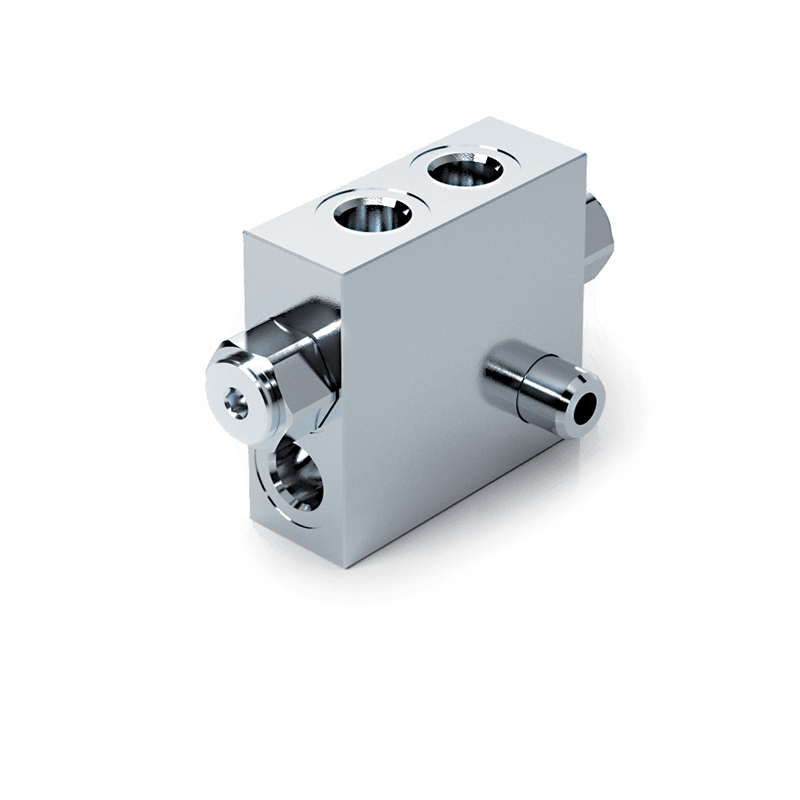

Oleodinamica Marchesini V0190/FLV VBPDE 1/2 A FLV double pilot-operated check valve

Oleodinamica Marchesini V0190/FLV is the VBPDE 1/2 A FLV double pilot-operated check valve, with a factory maximum operating pressure of 350 bar and mass of 2.300 kg.

The double pilot-operated check arrangement holds the actuator in both directions. The factory lists maximum flow of 55 l/min, pilot ratio 1:4.5 and cracking pressure of 5.5 bar. Supply flow passes towards the actuator; reverse flow is blocked until pressure in the opposite line pilots the corresponding check open.

Connect V1/V2 to supply and C1/C2 to the actuator, using the fitting at C1 and the supplied drilled bolt at C2. The connections are 1/2" BSP. The direct cylinder mounting and Type A FLV circuit distinguish this article from a conventional inline double check valve.

The zinc-plated steel body contains hardened and ground steel parts with standard BUNA-N seals. The original factory hydraulic symbol and exact article drawing are retained in the local PDF. Where the manufacturer describes slight internal leakage, the component is not represented as a zero-leakage shut-off device.

The local technical PDF contains the complete relevant manufacturer spread, including the named article or accessory drawing. Neighbouring valve ratings and optional configurations apply only to the corresponding identified part. Any 50 °C oil temperature and 30 cSt viscosity beside curves are reference conditions.
