Oleodinamica Marchesini V0114 VBPDE 3/8 L CMP/FLV double pilot-operated check valve

Oleodinamica Marchesini V0114 (VBPDE 3/8 L CMP/FLV) is a double pilot-operated check valve. The factory maximum operating pressure is 300 bar and the maximum flow is 20 l/min.

Two pilot-operated checks retain the actuator in both directions. Each section permits supply flow towards its cylinder port and blocks return until the opposite pilot line is pressurised. Connect V1/V2 to the supply and C1/C2 to the actuator using the mounting arrangement for this execution.

The manufacturer table specifies a 1:4.9 pilot ratio and a catalogue cracking pressure of 1 bar. These are the standard table values for this code; optional springs and seal arrangements are separate configurations.

The compact CMP/FLV valve mounts directly to the cylinder through the supplied drilled screw and two bonded washers. Check the cylinder-boss outside diameter against the counterbore shown in the original drawing. This compact execution has its own 300 bar and 20 l/min limits.

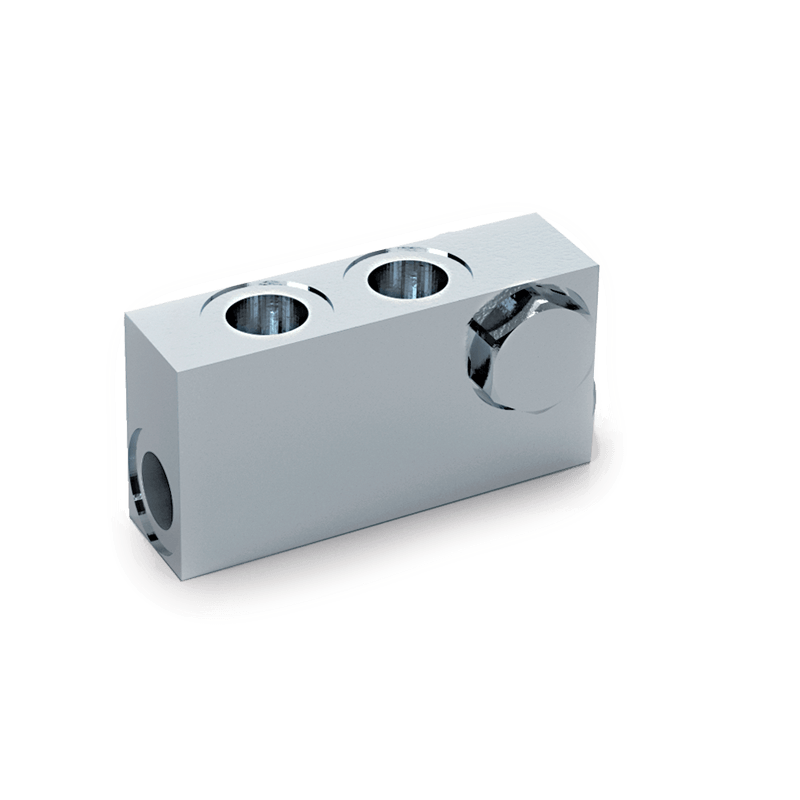

The body is zinc-plated steel with hardened and ground steel internal components and standard BUNA N seals. The local PDF preserves the complete relevant manufacturer ratings, schematic, dimensions and conditions. Representative manufacturer product image for the VBPDE CMP/FLV series. Use the exact article drawing in the local PDF to check its connections and mounting arrangement.
