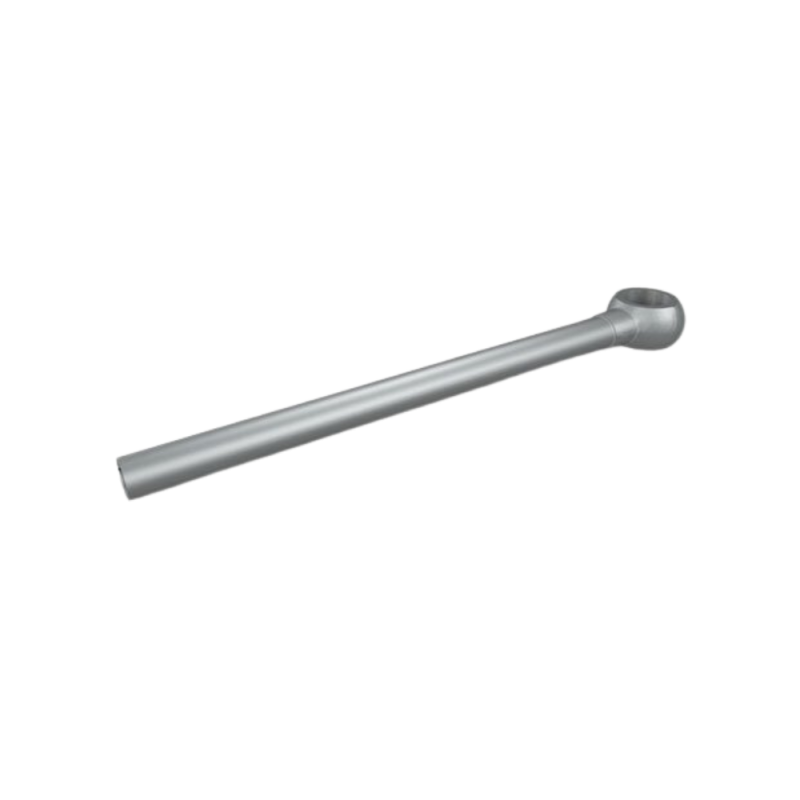

Long banjo pipe

Oleodinamica Marchesini R1240 long banjo pipe

Model: R1240 · Oleodinamica Marchesini
Maximum operating pressure (bar)350
Body materialZinc-plated steel
Connection standardDIN 2353 valve-mounting family
Eye bore diameter (mm)13.3

Description

Oleodinamica Marchesini R1240 is a long banjo pipe for direct cylinder mounting of the DIN 2353 valve family. Its exact OL row gives length 205 mm, eye bore 13.3 mm and a 12 mm tube outside diameter. The nominal eye designation 1/4 identifies the catalogue size; it is not presented as a threaded port in the smooth-bore banjo eye.

The factory family assigns 350 bar working pressure and 1000 bar burst pressure to the corresponding 12L tube execution. Burst pressure is a separate destructive-limit reference, not a working-pressure limit. The original row mass is 0.106 kg and banjo height is 14.5 mm.

The zinc-plated steel pipe can be oriented during assembly to set the valve-to-cylinder arrangement. The manufacturer describes 360-degree mounting adjustment; this is not a continuously rotating swivel under operation. Fit the pipe into the valve connection and secure the eye with the specified hollow bolt. Bolt, sealing details and assembly dimensions must match the exact interface.

Test conditions for the curves are 50 °C oil temperature and 30 cSt viscosity.

Full specifications

Technical specifications
Product type Long banjo pipe
Burst pressure (bar) 1000
Maximum operating pressure (bar) 350
Eye bore diameter (mm) 13.3
Connection standard DIN 2353 valve-mounting family
Mounting Valve banjo connection
Factory nominal eye designation 1/4
Factory type designation OL 1/4
Manufacturer Oleodinamica Marchesini
Manufacturer part number R1240
Product family OL
Tube outside diameter (mm) 12
Banjo height (mm) 14.5
Mass (kg) 0.106
Overall length (mm) 205
Technical specifications
Body material Zinc-plated steel
Valve function Hydraulic connection
