Oleodinamica Marchesini G1042 GG 90° 1 1/4 90-degree rotating coupling

Oleodinamica Marchesini G1042 (GG 90° 1 1/4) is a 90-degree rotating coupling for a 1 1/4" BSP hydraulic connection. The factory table lists a maximum flow of 270 l/min, a maximum pressure during rotation of 100 bar and a separate maximum pressure rating of 300 bar.

Installed between a flexible hose and a fixed component, the coupling compensates hose rotation and torsion to help prevent hose damage. The manufacturer explicitly excludes fast and continuous rotation. No permitted rotational speed is specified on the sheet. Apply the lower pressure limit when the joint is rotating.

The body is zinc-plated steel with low-friction seals. Connect the P ports as shown in the original drawing. This is the 90-degree arrangement, with a listed L1 dimension of 119.5 mm. Seal compound and a temperature range are not specified in the source.

The G-prefixed article is the standard BSP-threaded steel execution. The manufacturer lists NPT-threaded GN and stainless-steel GX versions on request; neither option is assigned to this exact article.

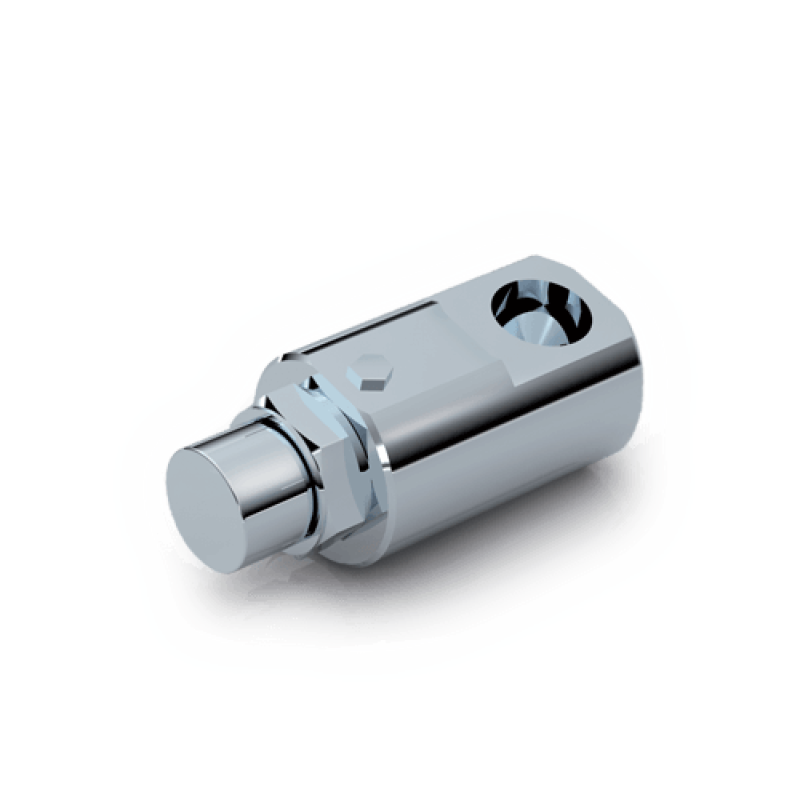

The local PDF retains the complete relevant original manufacturer table and drawing. Representative manufacturer product image for the GG 90° series. Use the exact article drawing in the local PDF to check its connections and mounting arrangement.
