Oleodinamica Marchesini B5500 valve mounting flange

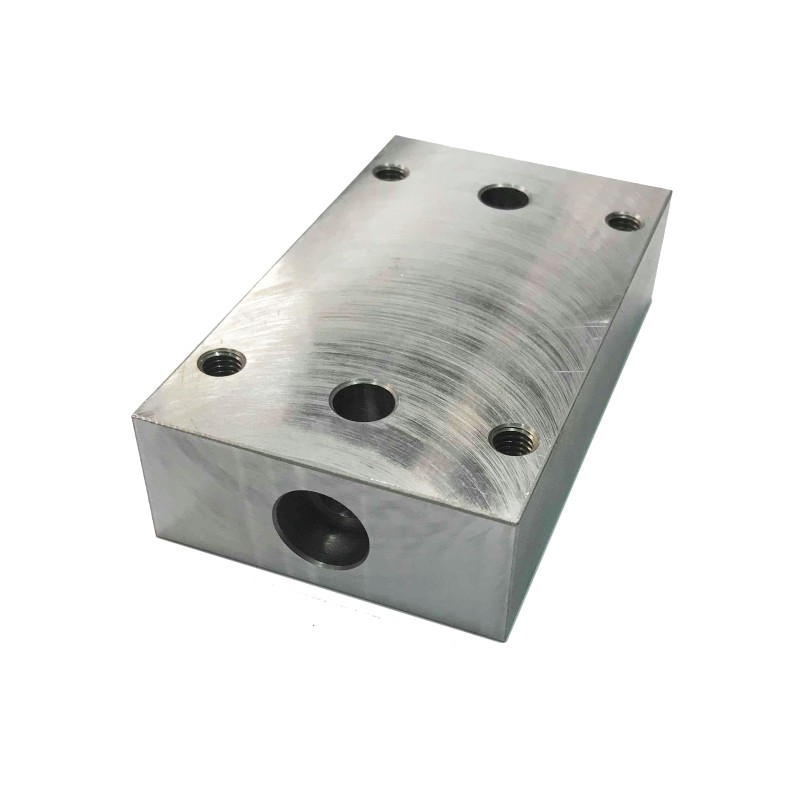

Oleodinamica Marchesini B5500 is the separate mounting flange shown on the VBPDE FL factory sheet. The original accessory drawing gives width 120 mm, height 70 mm and thickness 30 mm. The selected supplier offer identifies the flange as an individual part.

The base provides the mechanical mounting interface and drilled oil passage for the compatible valve arrangement. The drawing identifies an 11 mm passage bore and M8 mounting-screw threads. These are machining dimensions, not pipe-thread sizes or a maximum-flow rating.

The factory names this base for the VBPDE 1/2 FL arrangement; the supplier explicitly identifies compatibility with V0195.

A complete valve, fasteners and seals are not inferred as included. The sheet does not independently state the flange material, mass, pressure or flow rating, so those companion-valve properties are not copied into this accessory profile.

The local technical PDF contains the complete relevant manufacturer spread, including the named article or accessory drawing. Neighbouring valve ratings and optional configurations apply only to the corresponding identified part. Any 50 °C oil temperature and 30 cSt viscosity beside curves are reference conditions.
