Oleodinamica Marchesini B5000 valve mounting flange

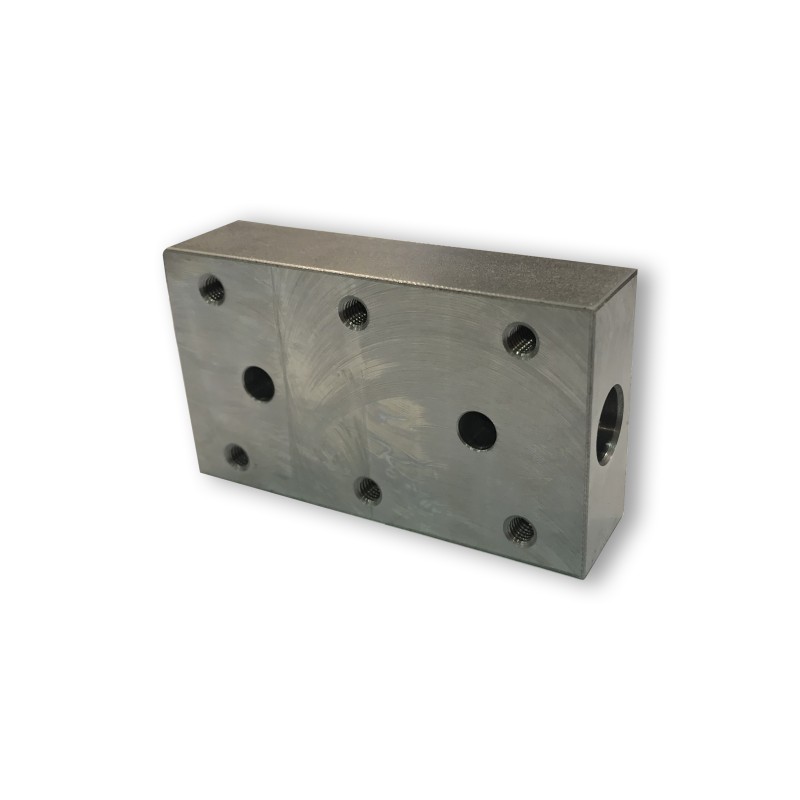

Oleodinamica Marchesini B5000 is the separate mounting flange shown on the VBPDE FL factory sheet. The original accessory drawing gives width 96 mm, height 55 mm and thickness 25 mm. The selected supplier offer identifies the flange as an individual part.

The base provides the mechanical mounting interface and drilled oil passage for the compatible valve arrangement. The drawing identifies an 8 mm passage bore and M6 mounting-screw threads. These are machining dimensions, not pipe-thread sizes or a maximum-flow rating.

The factory names this base for the VBPDE 3/8 FL arrangement; the supplier explicitly identifies compatibility with V0185. The modified V0187 pattern must be checked separately.

A complete valve, fasteners and seals are not inferred as included. The sheet does not independently state the flange material, mass, pressure or flow rating, so those companion-valve properties are not copied into this accessory profile.

The local technical PDF contains the complete relevant manufacturer spread, including the named article or accessory drawing. Neighbouring valve ratings and optional configurations apply only to the corresponding identified part. Any 50 °C oil temperature and 30 cSt viscosity beside curves are reference conditions.
