Oleodinamica 2MP SVCP-S10-TS1-N-0-000 Normally closed Solenoid Cartridge Valve

SVCP-S10-TS1-N-0-000 is an actual Flowfit-selected Oleodinamica 2MP two-way, two-position solenoid cartridge, reconciled with the manufacturer’s S10-TS1 ordering fields. This normally closed execution has single poppet construction, NBR seals and no manual override. When de-energized, the cartridge blocks flow from 2 to 1 and allows check-valve flow from 1 to 2. Energizing opens 2 to 1; reverse flow in that operating state is restricted.

The screw-in cartridge uses 7/8-14 UNF and the manufacturer-designated C035 cavity. The explicit 000 voltage field identifies a cartridge supplied without a coil; select the separately specified coil and connector for the application.

Source qualification: Exact supplier title gives 70 L/min; current OEM family gives 80 L/min. No nominal-flow numericfacet assigned pending suppliedrevision confirmation.

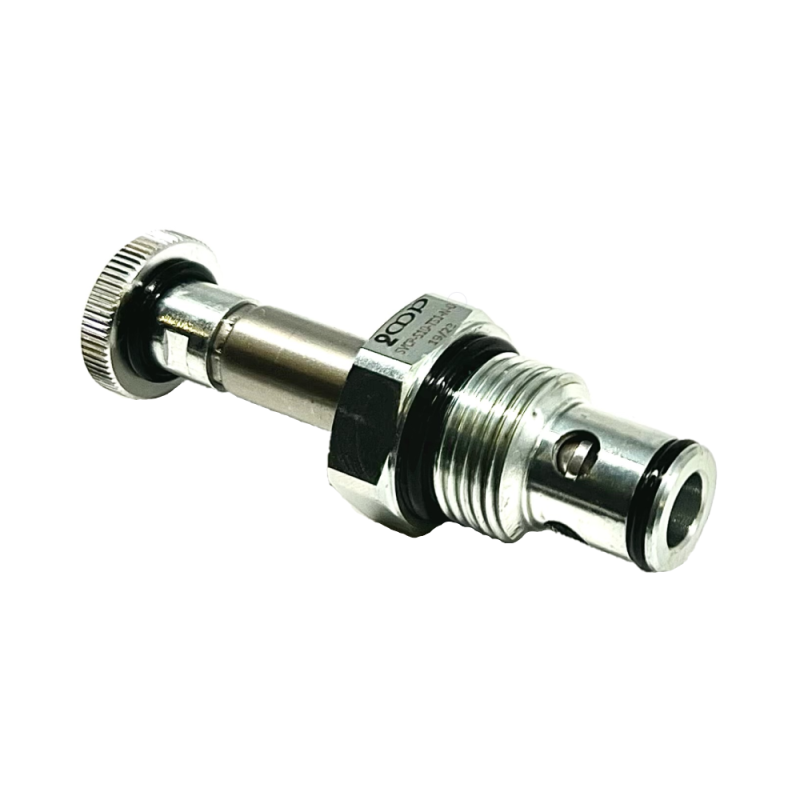

The image is a genuine supplier photograph of this selected cartridge listing. It is representative of the listed valve family and does not certify a particular serial-number or supplied revision. Dimensions, mass, temperature limits and optional external-body ratings have not been transferred from another execution. Confirm the original selected cavity drawing and the actual electrical assembly before installation.
