Oleodinamica 2MP SVCP-S10-TD3-N-0-000 Normally closed Solenoid Cartridge Valve

SVCP-S10-TD3-N-0-000 is an actual Flowfit-selected Oleodinamica 2MP two-way, two-position solenoid cartridge, reconciled with the manufacturer’s S10-TD3 ordering fields. This normally closed execution has double poppet construction, NBR seals and no manual override. With the coil de-energized the valve blocks both flow directions; energizing opens the flow paths.

The screw-in cartridge uses 7/8-14 UNF and the manufacturer-designated C035 cavity. The explicit 000 voltage field identifies a cartridge supplied without a coil; select the separately specified coil and connector for the application.

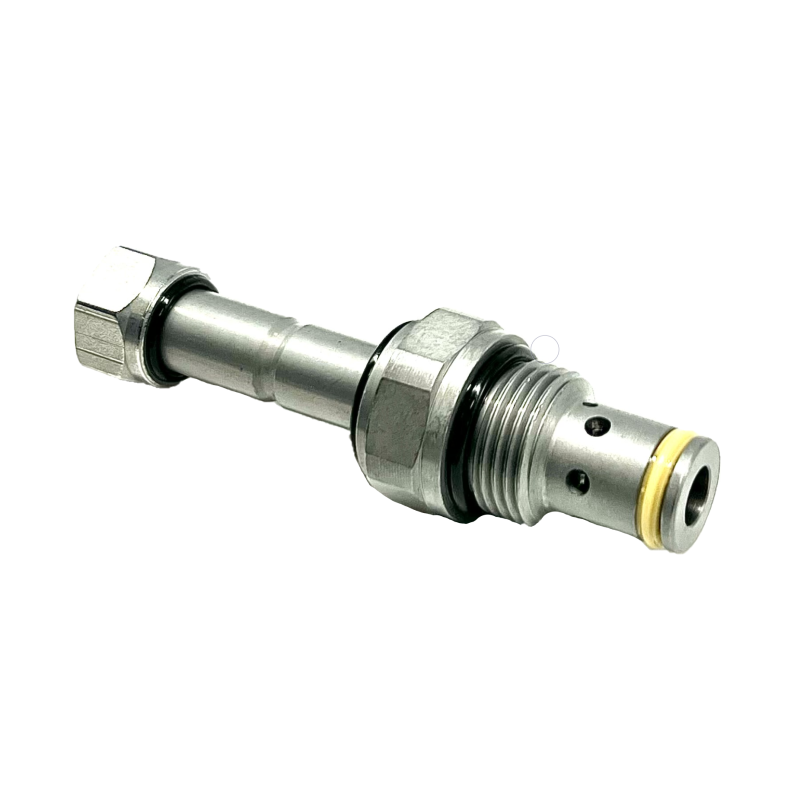

The image is a genuine supplier photograph of this selected cartridge listing. It is representative of the listed valve family and does not certify a particular serial-number or supplied revision. Dimensions, mass, temperature limits and optional external-body ratings have not been transferred from another execution. Confirm the original selected cavity drawing and the actual electrical assembly before installation.
