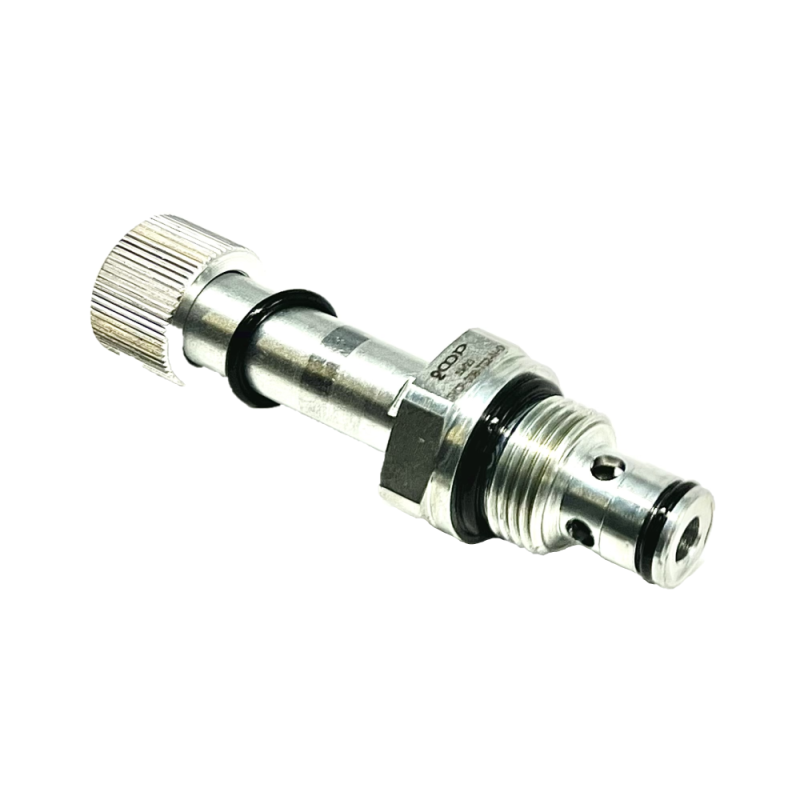

Oleodinamica 2MP SVCP-S08-TS2-N-0 Normally open Solenoid Cartridge Valve
Click image to enlarge
Solenoid-operated cartridge valve

Oleodinamica 2MP SVCP-S08-TS2-N-0 Normally open Solenoid Cartridge Valve
Model: SVCP-S08-TS2-N-0 · Oleodinamica 2MP
Nominal flow (l/min)40
Number of ways2
ActuationSolenoid
MountingScrew-in cartridge
Cartridge thread3/4-16 UNF
Seal materialNBR
Full specifications ↓ Technical catalog · PDF

Description

Oleodinamica 2MP SVCP-S08-TS2-N-0 is a two-way, two-position solenoid cartridge. It is normally open, with single-poppet construction, NBR seals and no manual override.

When de-energized, it permits flow from port 2 to port 1 while reverse flow is restricted. Energizing blocks the port 2 to port 1 path.

The cartridge has a 3/4-16 UNF mounting thread. Confirm cavity compatibility against the supplied cartridge drawing before installation; C007 and C008 references differ between documents.

Confirm the required coil, voltage, connector and supplied electrical assembly before installation.

Confirm the pressure rating of the supplied revision before use.

Full specifications

Technical specifications
Product type Solenoid-operated cartridge valve
Operating principle Pilot-operated
Nominal flow (l/min) 40
Mounting Screw-in cartridge
Cavity documentation reference Cavity references conflict: C007 and C008. Confirm the supplied cavity before installation.
Coil supply Not established by selected abbreviated supplier order code
Manual override None
Manufacturer Oleodinamica 2MP
Manufacturer part number SVCP-S08-TS2-N-0
Poppet arrangement Single poppet
Rest position Normally open
Technical specifications
Number of ways 2
Number of positions 2
Actuation Solenoid
Cartridge thread 3/4-16 UNF
Technical specifications
Seal material NBR
