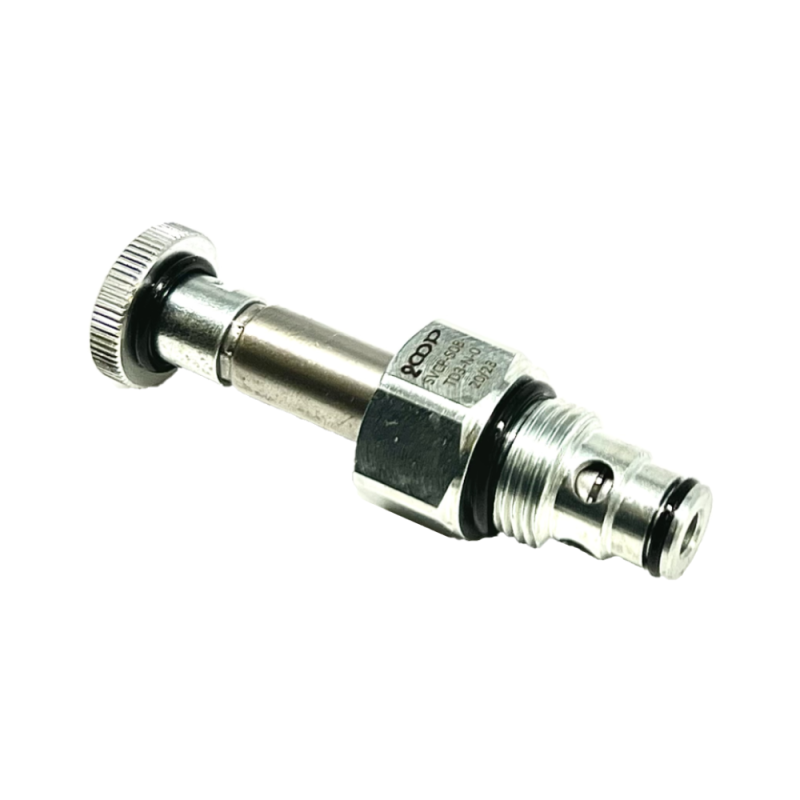

Oleodinamica 2MP SVCP-S08-TD3-N-0-000 Normally closed Solenoid Cartridge Valve
Click image to enlarge
Solenoid-operated cartridge valve

Oleodinamica 2MP SVCP-S08-TD3-N-0-000 Normally closed Solenoid Cartridge Valve
Model: SVCP-S08-TD3-N-0-000 · Oleodinamica 2MP
Maximum working pressure (bar)350
Nominal flow (l/min)40
Number of ways2
ActuationSolenoid
MountingScrew-in cartridge
Cartridge thread3/4-16 UNF
Full specifications ↓ Technical catalog · PDF

Description

Oleodinamica 2MP SVCP-S08-TD3-N-0-000 is a two-way, two-position solenoid cartridge. It is normally closed, with double-poppet construction, NBR seals and no manual override.

When de-energized, it blocks flow in both directions. Energizing opens both flow paths.

The cartridge has a 3/4-16 UNF mounting thread. Confirm cavity compatibility against the supplied cartridge drawing before installation; C007 and C008 references differ between documents.

This execution is supplied without a coil. Select a compatible coil and connector for the application.

Full specifications

Technical specifications
Product type Solenoid-operated cartridge valve
Operating principle Pilot-operated
Nominal flow (l/min) 40
Mounting Screw-in cartridge
Cavity documentation reference Cavity references conflict: C007 and C008. Confirm the supplied cavity before installation.
Coil supply Without coil (000 voltage field)
Manual override None
Manufacturer Oleodinamica 2MP
Manufacturer part number SVCP-S08-TD3-N-0-000
Poppet arrangement Double poppet
Rest position Normally closed
Technical specifications
Number of ways 2
Number of positions 2
Actuation Solenoid
Cartridge thread 3/4-16 UNF
Technical specifications
Maximum working pressure (bar) 350
Technical specifications
Seal material NBR
