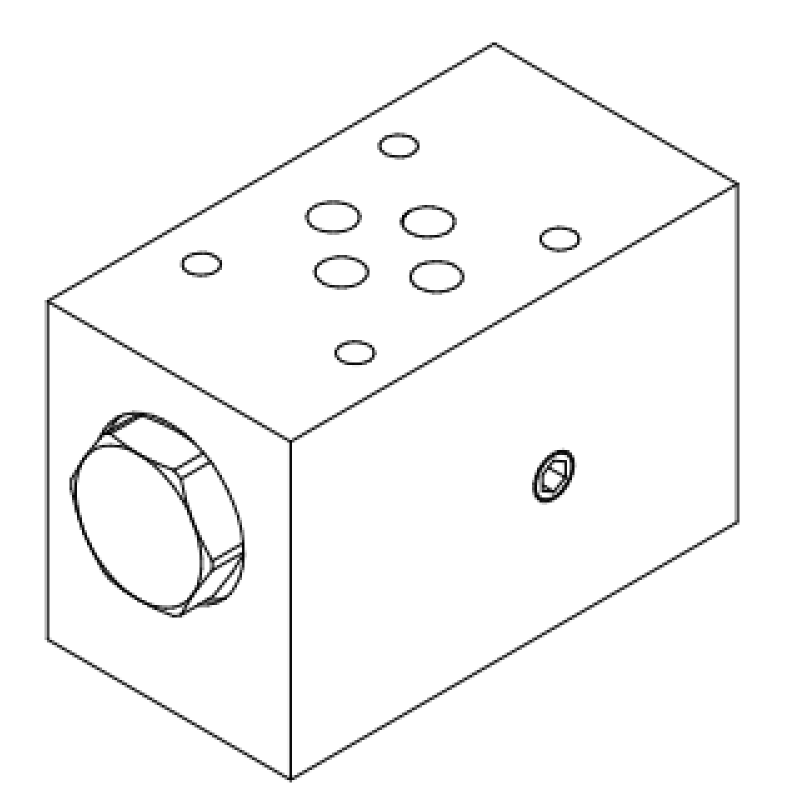

Oleodinamica 2MP MVS-06-FD-45-10 CETOP 3 flow divider-combiner sandwich valve
Click image to enlarge
Flow divider-combiner sandwich valve

Oleodinamica 2MP MVS-06-FD-45-10 CETOP 3 flow divider-combiner sandwich valve
Model: MVS-06-FD-45-10 · Oleodinamica 2MP
Maximum inlet flow (l/min)45
Side connection A23/8" BSP
Body materialSteel
Operating pressure (bar)345
Full specifications ↓ Technical catalog · PDF

Description

Oleodinamica 2MP MVS-06-FD-45-10 is a steel CETOP 3 flow divider-combiner sandwich valve for inlet flow up to 45 L/min. Operating pressure is 345 bar. The catalogue accuracy reference is ±5%; performance depends on operating conditions. The external side connection A2 is 3/8" BSP.

Full specifications

Technical specifications
Product type Flow divider-combiner sandwich valve
Operating pressure (bar) 345
Maximum inlet flow (l/min) 45
Catalogue accuracy reference ±5% (manufacturer statement; detailed test conditions not specified)
Design series 10
Interface CETOP 3
Manufacturer Oleodinamica 2MP
Manufacturer part number MVS-06-FD-45-10
Side connection A2 3/8" BSP
Technical specifications
Body material Steel
