Oleodinamica 2MP ES610-15-07 CETOP 3 SAE 08 Modular Housing, A and B lines

ES610-15-07 is an Oleodinamica 2MP steel CETOP 3 intermediate module for SAE 08 screw-in cartridges. The observed order code is reconciled with the manufacturer’s E_[S/A]610-15-[diagram] designation: S specifies steel and 07 identifies the documented circuit for the a and b lines.

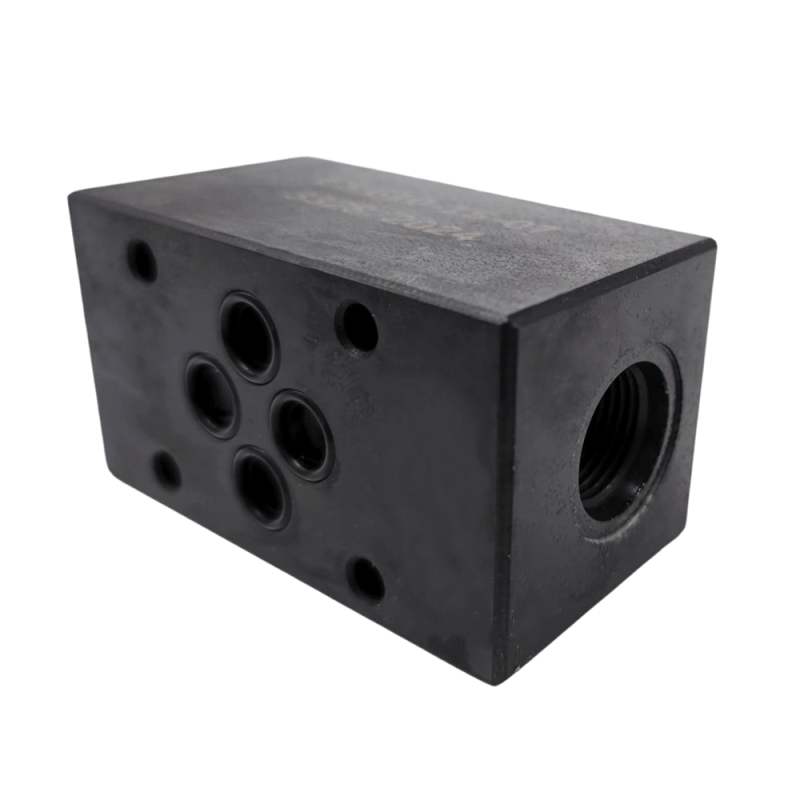

The selected Flowfit listing describes separate a–A and b–B cartridge paths. The manufacturer identifies the cavity as SAE 08 / C007. The product photograph is representative of the ES610-15 housing family; the circuit diagram determines the internal passage arrangement.

This profile describes the housing, not a supplied complete cartridge valve. Maximum pressure, flow capacity, cartridge performance, spring setting, seals material and mass are not established by the cited housing drawing and are not assigned. Use the selected circuit drawing and the documentation of the actual cartridge before specifying an assembly.

The current catalogue drawing and an older supplier-retained edition differ in body dimensions. No dimensions are assigned here; confirm the supplied revision before installation.
