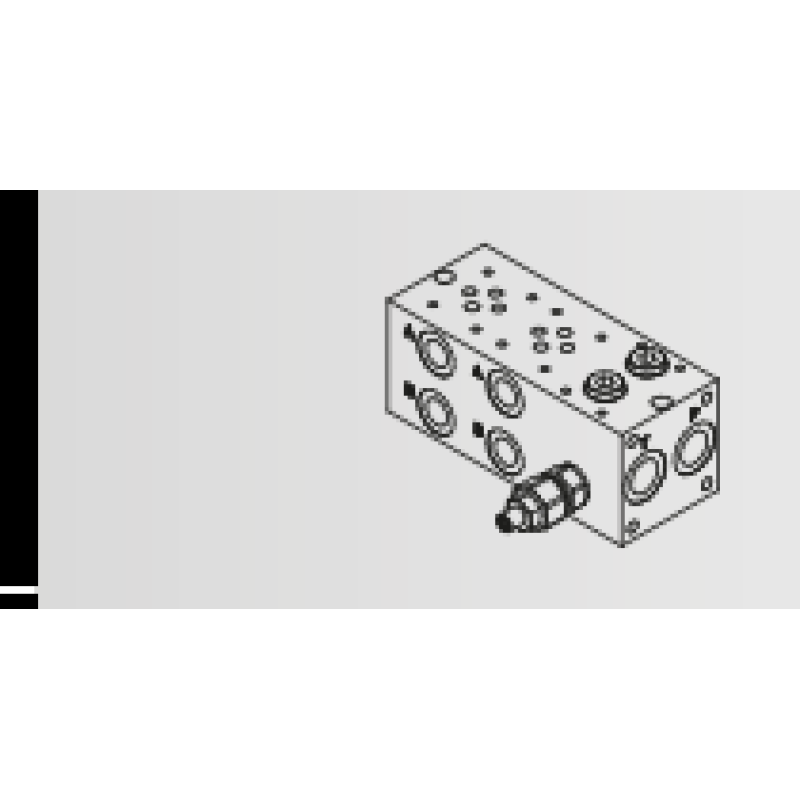

Oleodinamica 2MP ES0621380214HN 2-station CETOP 3 manifold with pressure relief
Click image to enlarge
Parallel directional-valve manifold

Oleodinamica 2MP ES0621380214HN 2-station CETOP 3 manifold with pressure relief
Model: ES0621380214HN · Oleodinamica 2MP
Maximum adjustment pressure (bar)350
A/B port connection3/8" BSP
Body materialSteel
Full specifications ↓ Technical catalog · PDF

Description

Oleodinamica 2MP ES0621380214HN 2-station CETOP 3 manifold with pressure relief is a steel manifold with 2 valve stations arranged in a parallel hydraulic circuit. Its A/B service ports are on the side and its P/T connections are at the rear. The A/B connections are 3/8" BSP and the P/T connections are 1/2" BSP. It has a pressure-relief valve, spring code 4 and a hexagonal-head adjustment screw. Its documented adjustment range is 100–350 bar; this range does not define the maximum working pressure of the complete assembly or a supplied preset. The seal designation is BUNA.

Venting valves and electrical equipment are not specified as part of this execution.

Full specifications

Technical specifications
Product type Parallel directional-valve manifold
Maximum adjustment pressure (bar) 350
A/B port connection 3/8" BSP
A/B port position Side
P/T port connection 1/2" BSP
Seal designation BUNA
Adjustment type Hexagonal-head screw
Interface CETOP 3
Manufacturer Oleodinamica 2MP
Manufacturer part number ES0621380214HN
Minimum adjustment pressure (bar) 100
Number of valve stations 2
Relief valve option With relief valve
Spring code 4
Venting configuration reference Electrical venting, coil, voltage and connector are unspecified for this selected article; no optional venting hardware is assigned.
Technical specifications
Body material Steel
