Oleodinamica 2MP ES06103814H CETOP 3 subplate with pressure relief

Oleodinamica 2MP ES06103814H is a steel CETOP 3 subplate with an integrated pressure-relief valve. It provides A/B/P/T connections on the side and additional P/T connections at the rear. The main connections are 3/8" BSP.

The selected execution has spring code 4 and a hexagonal-head adjustment screw. Its documented adjustment range is 100–350 bar; this is an adjustment range rather than the maximum working pressure of the complete assembly or a supplied preset.

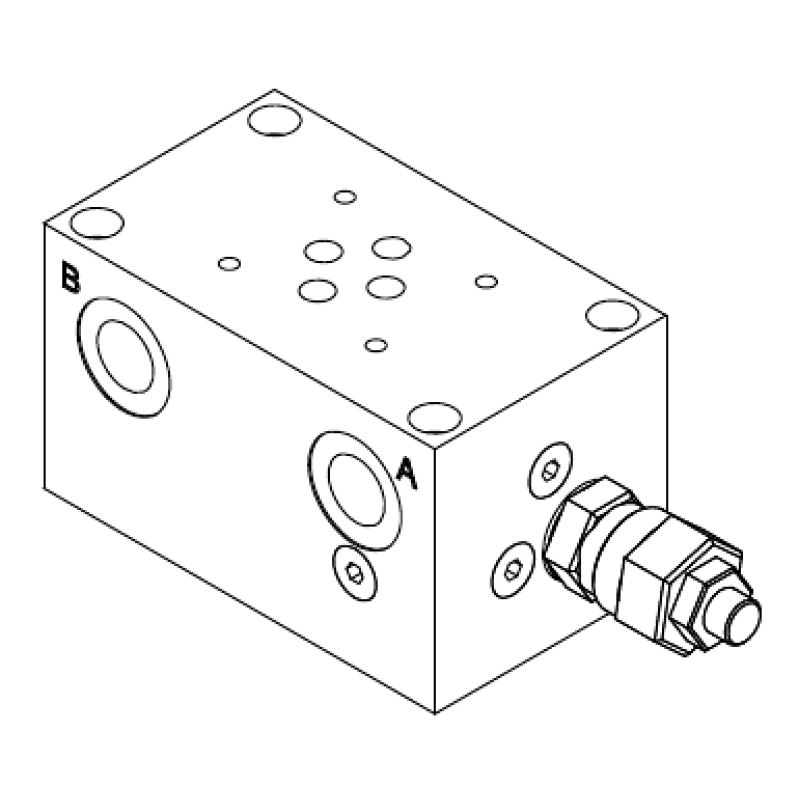

The technical reference is the manufacturer’s 2013 catalogue, which documents the E_06-10-38 family and the selected material and relief-control options. The complete article number is identified by the supplier. The illustration is an original family drawing rather than a product photograph; finish and supplied accessories may differ. Assembly pressure rating, maximum flow, mass and supplied accessories are unspecified.
