Modular starting subplate

Oleodinamica 2MP EA610083813H CETOP 3 modular subplate

Model: EA610083813H · Oleodinamica 2MP
A/B port connection3/8" BSP
Body materialAluminium

Description

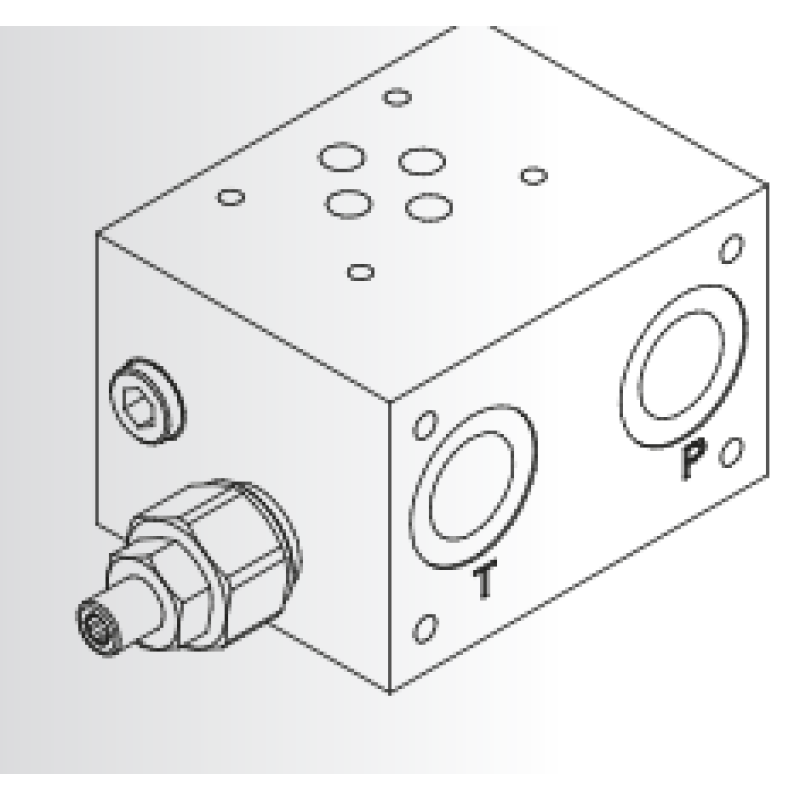

Oleodinamica 2MP EA610083813H is an aluminium CETOP 3 starting plate with a pressure-relief valve, spring code 3 and hexagonal-head adjustment. The spring adjustment range is 50–215 bar. This is independent of the complete-assembly working-pressure rating and does not specify the delivered pressure setting.

Full specifications

Technical specifications
Product type Modular starting subplate
A/B port connection 3/8" BSP
P/T port connection 1/2" BSP
Adjustment type Hexagonal-head screw
Interface CETOP 3
Manufacturer Oleodinamica 2MP
Manufacturer part number EA610083813H
Relief valve option With relief valve
Spring code 3
Technical specifications
Body material Aluminium
