Oleodinamica 2MP DRVS0804060NH direct-acting cartridge relief valve

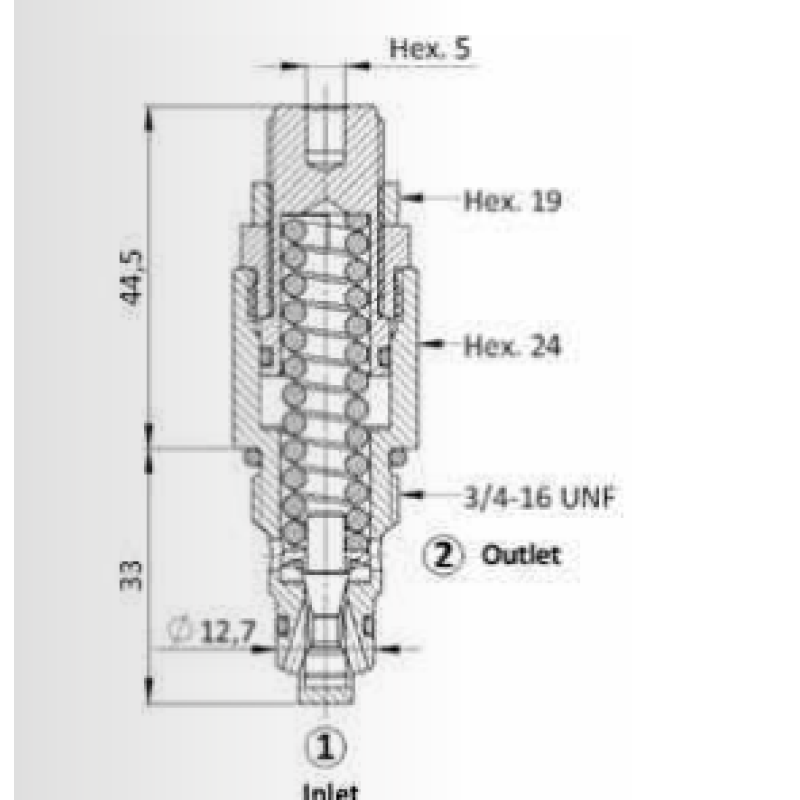

Oleodinamica 2MP DRVS0804060NH is a direct-acting screw-in pressure-relief cartridge for cavity C007 with a 3/4-16 UNF mounting thread. It has NBR seals and a hexagonal-head adjustment screw. Spring code 060 provides a 15–60 bar adjustment range. Maximum pressure is 350 bar and nominal flow is 30 L/min. The adjustment range does not specify the delivered pressure setting. The optional housing is not included.
