Oleodinamica 2MP DRV-M20-02-110-N-H direct-acting cartridge relief valve
Click image to enlarge
Direct-acting cartridge pressure relief valve

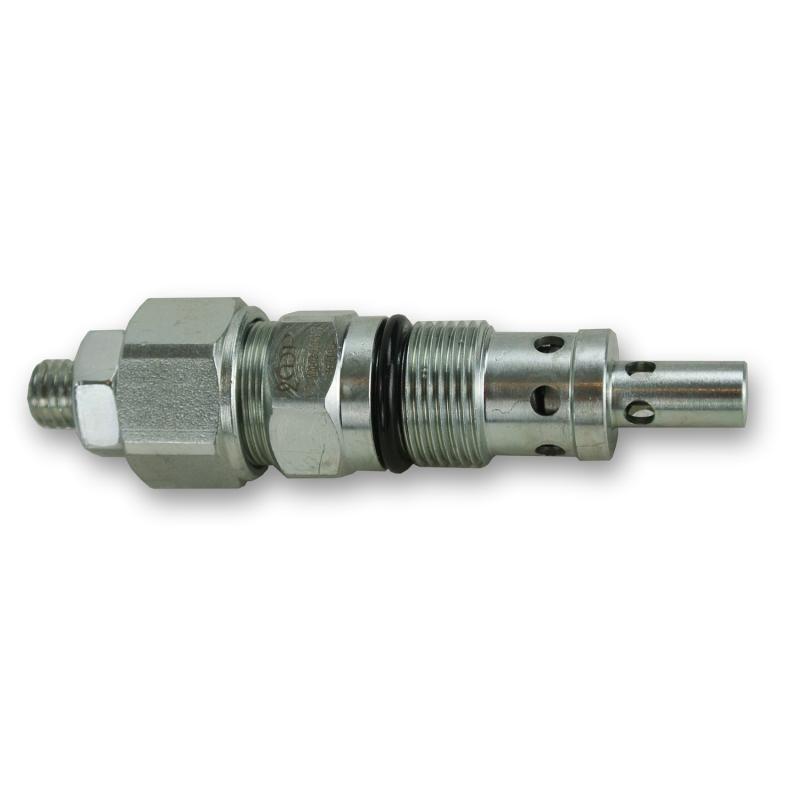

Oleodinamica 2MP DRV-M20-02-110-N-H direct-acting cartridge relief valve
Model: DRV-M20-02-110-N-H · Oleodinamica 2MP
Valve functionOpens flow from port 1 to port 2 when inlet pressure exceeds the spring setting
MountingScrew-in cartridge
Cartridge threadM20 × 1.5
Seal materialNBR
Full specifications ↓ Technical catalog · PDF

Description

Oleodinamica 2MP DRV-M20-02-110-N-H is a direct-acting screw-in pressure relief cartridge in the DRV-M20-02 family.

It has a 25–110 bar spring adjustment range, NBR seals and hexagonal-head screw adjustment. The cartridge uses M20 × 1.5 mounting threads and the C008 cavity.

Flow opens from port 1 to port 2 when inlet pressure exceeds the spring setting. The optional in-line housing is not included. The spring adjustment range does not specify the delivered pressure setting.

Pressure, flow, installation torque, temperature limits and dimensions vary by revision; confirm the supplied revision before installation.

Full specifications

Technical specifications
Product type Direct-acting cartridge pressure relief valve
Pressure documentation reference Pressure references conflict: 420 bar and 350 bar. Confirm the applicable pressure rating before use.
Flow documentation reference Current OEM nominal40l/min; retained OEM and supplier30l/min. Supplied revision not established.
Mounting Screw-in cartridge
Adjustment Hexagonal head screw
Delivery pressure setting Not established; spring adjustment range does not state a delivered calibration
Manufacturer Oleodinamica 2MP
Manufacturer part number DRV-M20-02-110-N-H
Product family DRV-M20-02
Spring setting range 25–110 bar
Technical specifications
Cartridge thread M20 × 1.5
Valve function Opens flow from port 1 to port 2 when inlet pressure exceeds the spring setting
Technical specifications
Seal material NBR
Technical data
CAVITY C008
