Oil/air heat exchangers-BC series BC210230V
Click image to enlarge

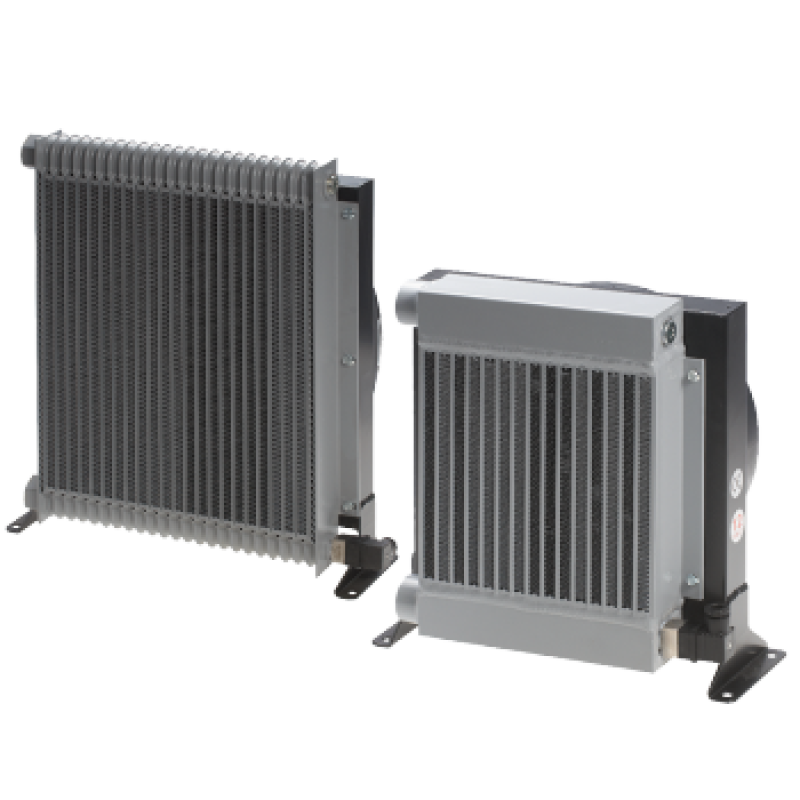

Oil-to-air heat exchanger

Oil/air heat exchangers-BC series BC210230V
Model: BC210230V
  • Model:
    BC210230V
Minimum oil flow (L/min)5
Maximum oil flow (L/min)60
Voltage specification230 V AC
Motor power (W)65
Connection specification1" BSP
Ingress protectionIP64
Full specifications ↓ Technical catalog · PDF

Description

BC210230V is an oil-to-air heat exchanger. Its official model row lists an oil-flow range of 5–60 L/min, 230 V AC supply and 65 W motor power.

The power value in watts describes the electrical motor rating, rather than heat rejection capacity. The source supplies model-specific electrical, connection and cooling-unit data.

Technical documentation publisher: DICSA. Official model data (PDF).

Full specifications

Technical specifications
Component type Oil-to-air heat exchanger
Maximum working pressure (bar) 16
Minimum oil flow (L/min) 5
Maximum oil flow (L/min) 60
Air flow (m³/h) 500
Voltage specification 230 V AC
Electrical supply AC
Voltage (V) 230
Motor power (W) 65
Connection specification 1" BSP
Ingress protection IP64
Catalog capacity (L) 1.7
Catalog noise level (dB(A)) 72
Test pressure (bar) 25
Original specifications — unverified

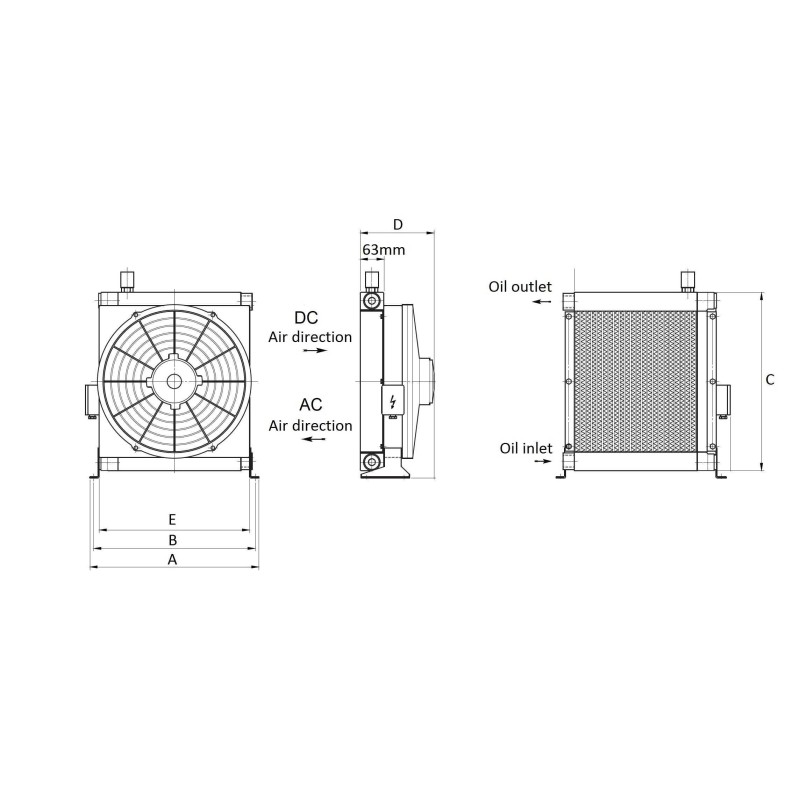

Unverified original: E 227
Unverified original: A 278
Unverified original: B 258
Unverified original: D 167
Unverified original: C 322,5
Unverified original current (unit not confirmed) 0,27
