Oil/air heat exchangers-AP series, alternative current AP300230V
Click image to enlarge

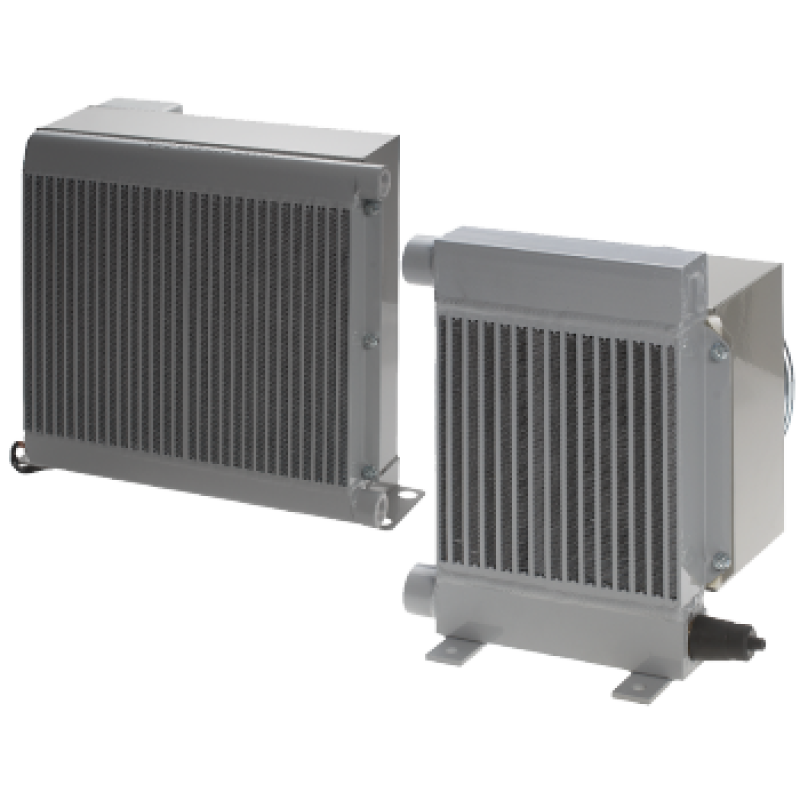

Oil-to-air heat exchanger

Oil/air heat exchangers-AP series, alternative current AP300230V
Model: AP300230V
  • Model:
    AP300230V
Minimum oil flow (L/min)10
Maximum oil flow (L/min)80
Voltage specification230 V AC
Motor power specification (W)120/160
Connection specification1" BSP
Ingress protectionIP44
Full specifications ↓ Technical catalog · PDF

Description

AP300230V is an oil-to-air heat exchanger. Its official model row lists an oil-flow range of 10–80 L/min, 230 V AC supply and 120/160 W motor power.

The power value in watts describes the electrical motor rating, rather than heat rejection capacity. The source supplies model-specific electrical, connection and cooling-unit data.

Technical documentation publisher: DICSA. Official model data (PDF).

Full specifications

Technical specifications
Component type Oil-to-air heat exchanger
Minimum oil flow (L/min) 10
Maximum oil flow (L/min) 80
Air flow (m³/h) 910
Voltage specification 230 V AC
Electrical supply AC
Voltage (V) 230
Motor power specification (W) 120/160
Connection specification 1" BSP
Ingress protection IP44
Catalog capacity (L) 2
Catalog noise level (dB(A)) 74
Original specifications — unverified

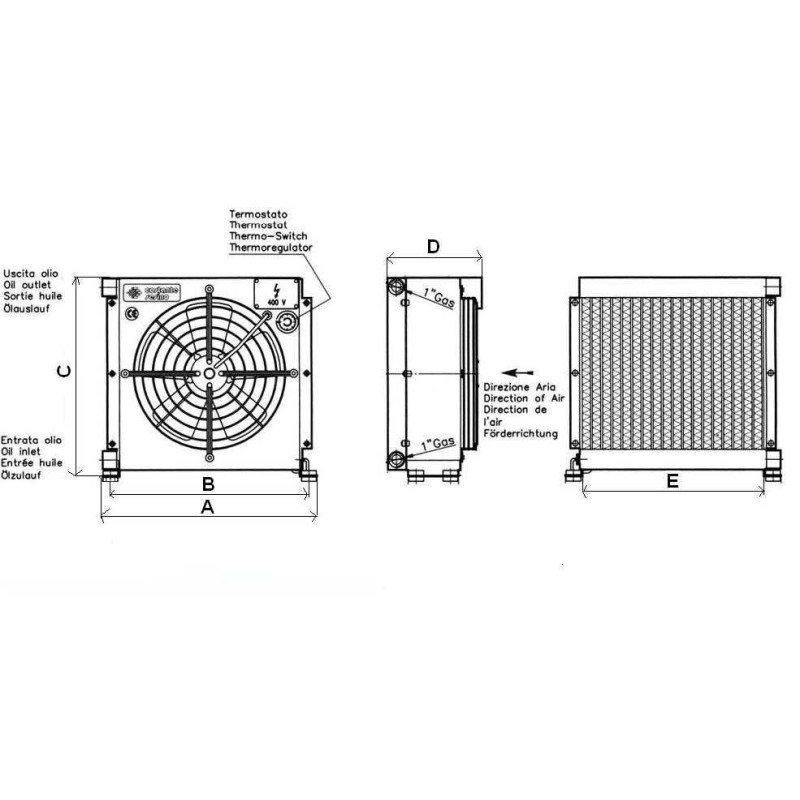

Unverified original: E 290
Unverified original: A 340
Unverified original: B 315
Unverified original: D 220
Unverified original: C 358
Unverified original current (unit not confirmed) 0,53/0,7
