Tube fitting

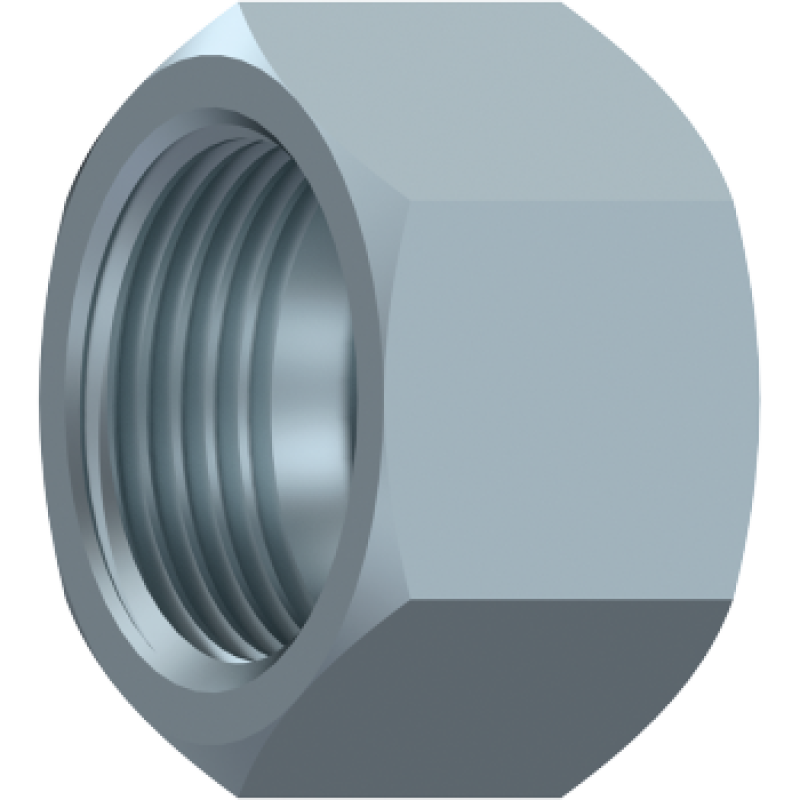

Nuts DIN 3870 ML 28 M 36X2

Model: ML 28 M 36X2
Working pressure, bar160
R1M36x2

Description

Nuts DIN 3870 ML 28 M 36X2. This fitting connects the stated fluid-line components. Match each mating connection and sealing interface.

This engineering record preserves the exact model reference from the source import. Normalized specifications are shown where the primary model row establishes their meaning and units. Original imported specifications are retained separately for review.

Full specifications

Technical specifications
Component type Tube fitting
Connection family Metric Welding fittings
Documentation status Exact model documented
Original specifications - unverified
Working pressure, bar 160
R1 M36x2
Serie L
HEX1 41
L 21
ØD1 28
