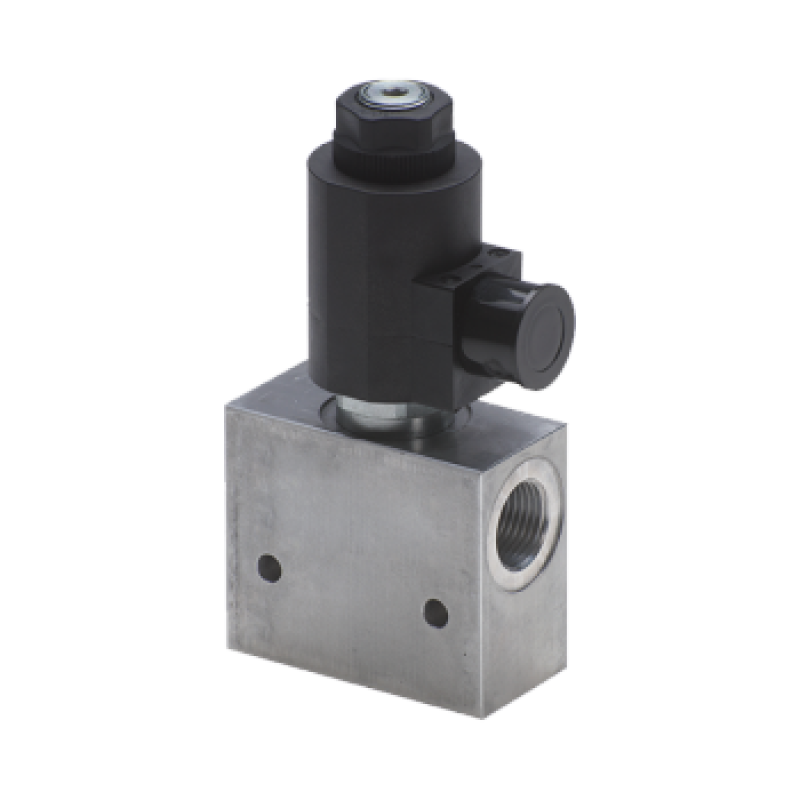

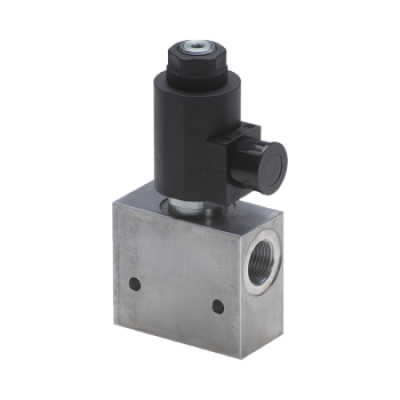

Normally open 2 ways valve VCC08NA12CC
Click image to enlarge
Two-way solenoid valve

Normally open 2 ways valve VCC08NA12CC
Model: VCC08NA12CC
  • Model:
    VCC08NA12CC
Maximum pressure (bar)230
Maximum flow (L/min)35
Normal stateNormally open
Coil voltage (V)12
Port thread3/8" BSP
Full specifications ↓ Technical catalog · PDF

Description

Technical overview

The VCC08NA12CC is a two-way solenoid valve. The following specifications are matched to the exact model row in the official DICSA catalogue.

Verified catalogue specifications

Component type
Two-way solenoid valve
Port thread
3/8" BSP
Coil voltage (V)
12
Electrical supply
DC
Maximum flow (L/min)
35
Maximum pressure (bar)
230
Normal state
Normally open
Number of ways
2

Technical documentation

Official technical documentation (PDF).

Technical documentation publisher: DICSA.

Specifications retain their original catalog reference. The product-card technical sheet is provided for comparison.

Full specifications

Technical specifications
Component type Two-way solenoid valve
Normal state Normally open
Number of ways 2
Maximum pressure (bar) 230
Maximum flow (L/min) 35
Coil voltage (V) 12
Electrical supply DC
Port thread 3/8" BSP

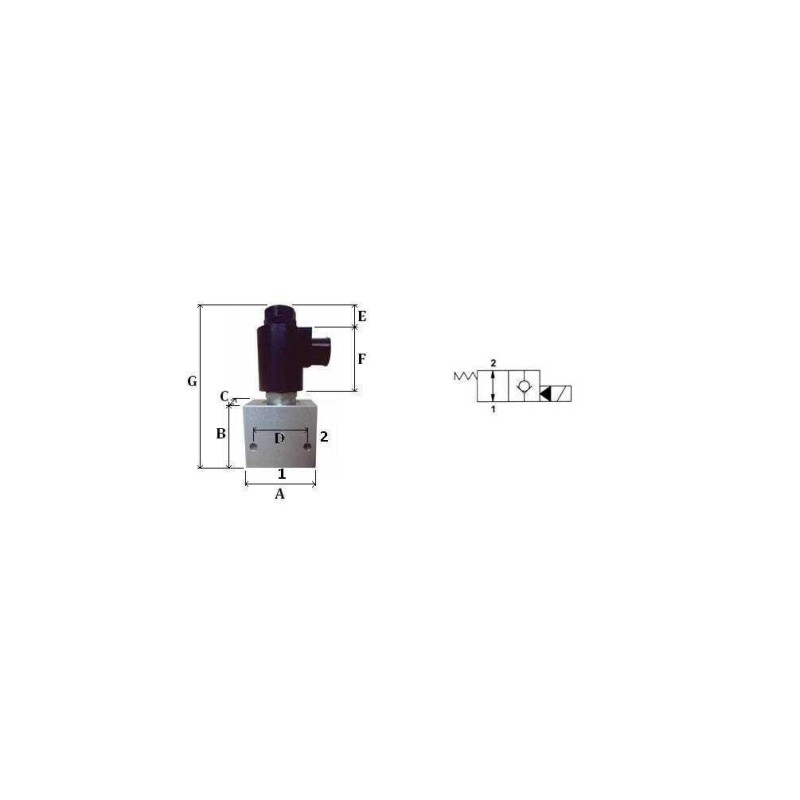

Original specifications — unverified
B 50
F 39
G 110
D 45
C 35
E 13
A 60
